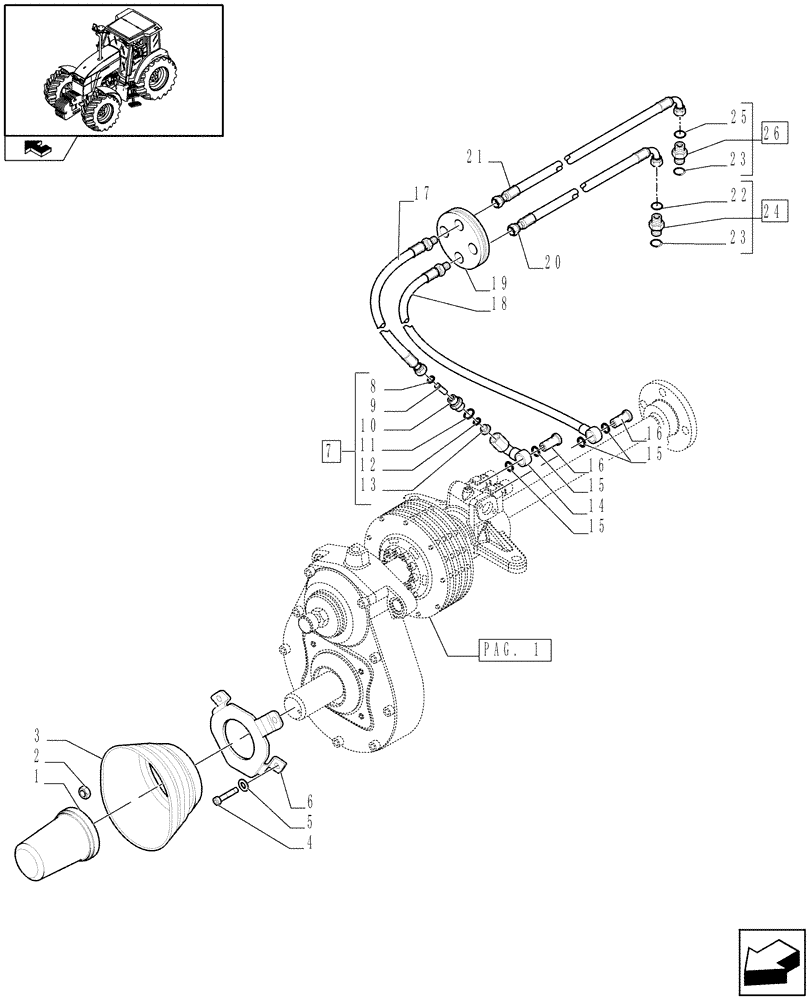

Запчасти Case IH PUMA 140 (1.80.5/02[03]) - INTEGRATED FRONT HPL WITH PTO - GUARDS AND PIPES - D6519 (VAR.333648-334648-335648) (07) - HYDRAULIC SYSTEM

1

5165104

COVER

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

3

47056296

GUARD

1шт.

4

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

47057580

COVER

1шт.

7

47127491

HYD CONNECTOR,M10 x 1 x 7.4mm L

Incl. 8 - 13

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

9

47126655

FILTER STRAINER

w/Filter

1шт.

10

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

11/16"-16, M16 x 1.5

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

12

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

13

47127332

ORIFICE,M10 x 1

1шт.

14

47057815

TUBE

1шт.

15

4858609

WASHER,Brass

16 x 22 x 1.5

4шт.

16

10184417

BANJO BOLT,M16 x 1.5 x 31mm

2шт.

17

87622442

FLEXIBLE HOSE,6.40 mm ID x 700.00 mm, SAE 100R2

11/16"-16, 7/16"-20, 580MM

1шт.

18

87622443

FLEXIBLE HOSE,780.00 mm

7/16"-20, 660MM

1шт.

19

87302214

SUPPORT

1шт.

20

47057667

FLEXIBLE HOSE,6.4mm ID x 2000mm L, SAE 100R2

7/16"-20, 11/1"-16, 2000MM

1шт.

21

47057668

HYDRAULIC HOSE

7/16"-20, 13/16"-16, 2000MM

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

24

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.
