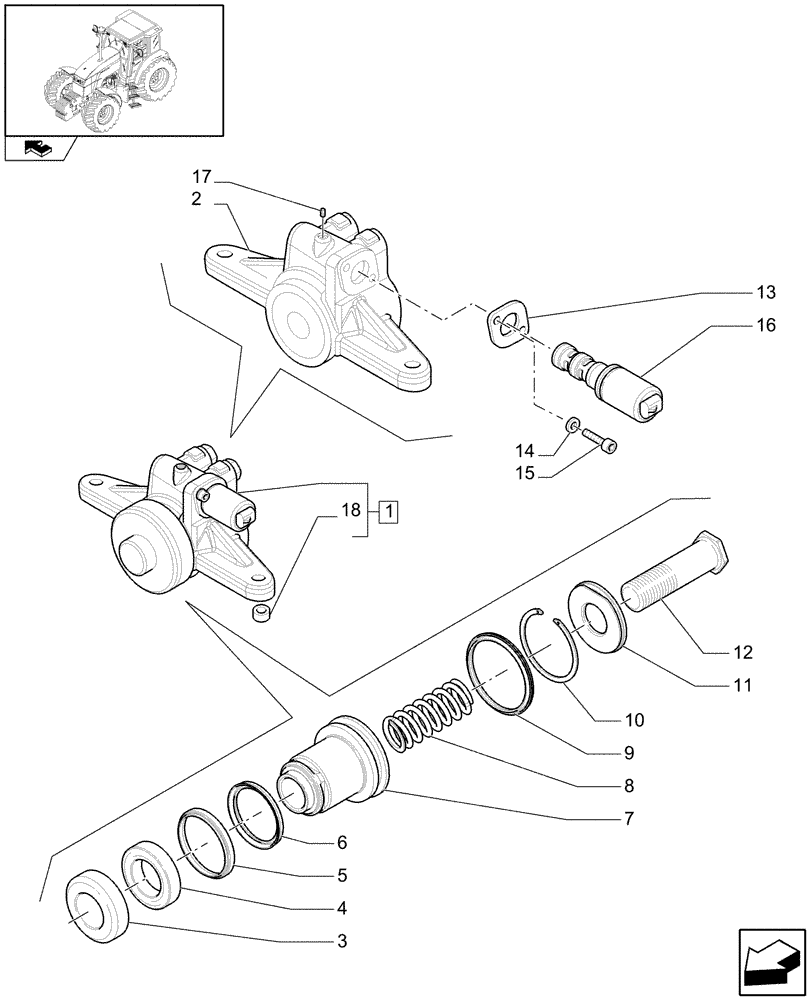

Запчасти Case IH PUMA 140 (1.80.5/01A) - FRONT POWER TAKE-OFF - CYLINDER - BREAKDOWN (VAR.333648-334648-335648-330847-331847-332847-333847-334847-335487) (07) - HYDRAULIC SYSTEM

1

47057804

CYLINDER

ASSY

1шт.

2

47057597

CYLINDER

1шт.

3

5196271

BEARING CARRIER

1шт.

4

5196275

BALL BEARING,45.00mm x 75.00mm x 16.00mm

45x75x16

1шт.

5

5196284

SEAL,65.00mm ID x 73.60mm OD x 5.30mm

65x73.6x5.3

1шт.

6

5196268

SEAL,65mm ID x 77mm OD x 8.5mm Thk

1шт.

7

5196281

PISTON

1шт.

8

5196266

SPRING,55mm OD x 128mm L

1шт.

9

5196267

SEAL,80.00mm ID x 90.00mm OD x 7.00mm

80x90x7

1шт.

10

5196244

CIRCLIP,82.00mm x 94.00mm x 2.00mm

80x94x2

1шт.

11

5196283

PLUG,39.5mm ID x 89.60-89.82mm OD x 10mm Thk

1шт.

12

47057766

BOLT,M39 x 4 x 120mm

1шт.

13

5194826

BRACKET

1шт.

14

11197771

LOCK WASHER

2шт.

15

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

16

5196873

SOLENOID VALVE

132MM

1шт.

17

14326150

PLUG,M8 x 1.25mm

1.25 x 8

1шт.

18

4966279

BUSHING,14.2mm ID x 20mm OD x 20.2mm L

D=14.2x20x20.2

2шт.
