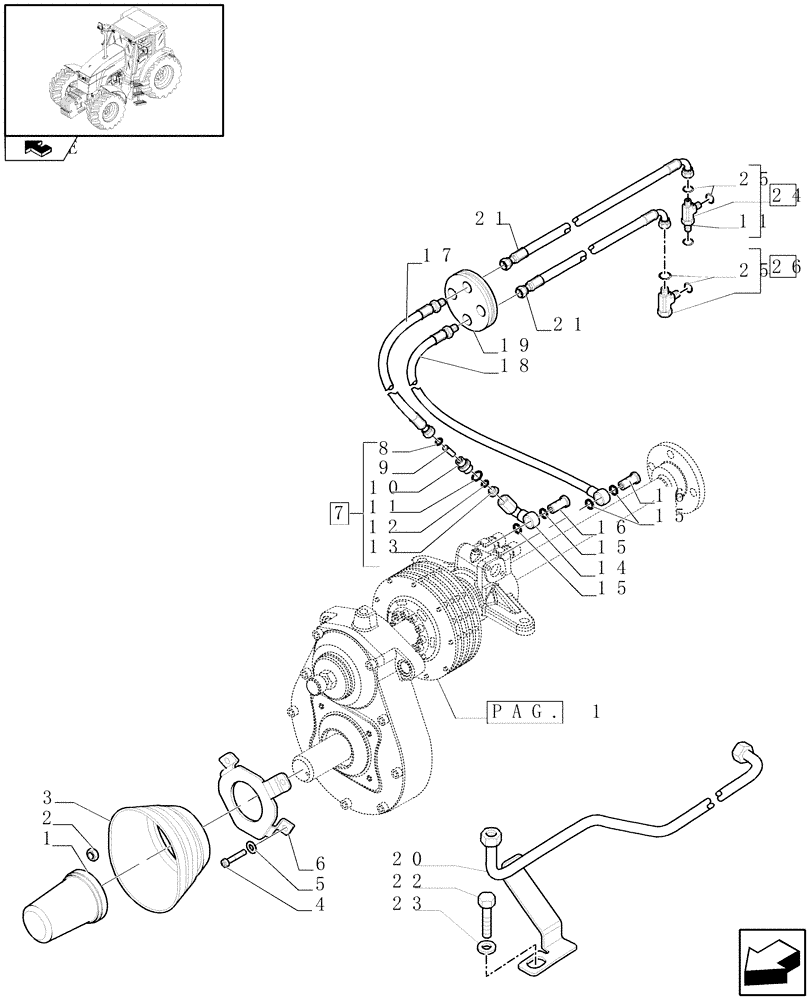

Запчасти Case IH PUMA 140 (1.80.5/01[02]) - INTEGRATED FRONT HPL WITH PTO - GUARDS AND PIPES - C6519 (VAR.330847-331847-332847-333847-334847-335487) (07) - HYDRAULIC SYSTEM

1

5165104

COVER

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

3

47056296

GUARD

1шт.

4

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

47057580

COVER

1шт.

7

47127491

HYD CONNECTOR,M10 x 1 x 7.4mm L

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

9

47126655

FILTER STRAINER

w/Filter

1шт.

10

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

11/16"-16, M16 x 1.5

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

12

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

13

47127332

ORIFICE,M10 x 1

1шт.

14

47057815

TUBE

1шт.

15

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

16 x 22 x 1.5

4шт.

16

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

17

87622442

FLEXIBLE HOSE,6.40 mm ID x 700.00 mm, SAE 100R2

700MM

1шт.

18

87622443

FLEXIBLE HOSE,780.00 mm

700MM

1шт.

19

87302214

SUPPORT

1шт.

21

47057668

HYDRAULIC HOSE

7/16"-20, 13/16"-16, 2000MM

2шт.

22

47057667

FLEXIBLE HOSE,6.4mm ID x 2000mm L, SAE 100R2

7/16"-20, 11/1"-16, 2000MM

1шт.

20

87519145

PIPE

1шт.

Less Brakes Only, VAR.330847-331847-332847-333847

1шт.

22

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

M16x25

1шт.

Less Brakes Only, VAR.330847-331847-332847-333847

1шт.

23

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

16x28

1шт.

Less Brakes Only, VAR.330847-331847-332847-333847

1шт.

24

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

25

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

4шт.

26

5194079

TEE

1шт.
