Запчасти Case IH PUMA 140 (1.80.1/01[02]) - POWER TAKE-OFF 540/100 RPM REVERSABLE SHAFT - SHAFT AND GEARS (VAR.330800) (07) - HYDRAULIC SYSTEM

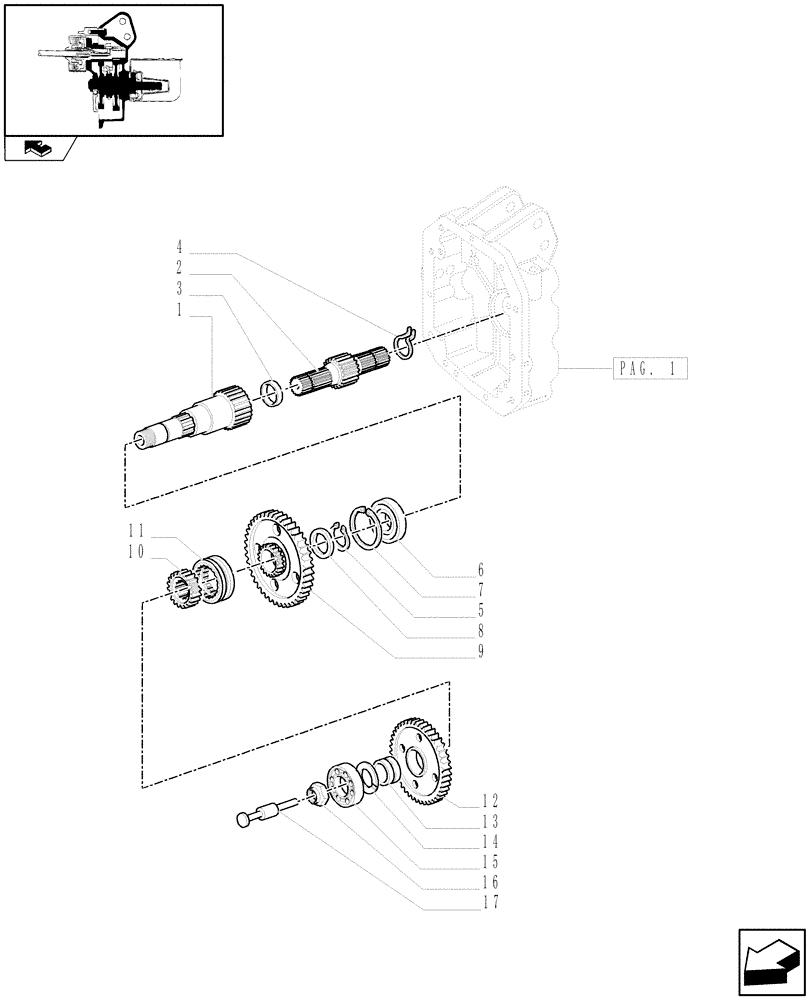

Схема запчастей Case IH PUMA 140 - (1.80.1/01[02]) - POWER TAKE-OFF 540/100 RPM REVERSABLE SHAFT - SHAFT AND GEARS (VAR.330800) (07) - HYDRAULIC SYSTEM
2
5
8
3
home
pag. 1
7
11
9
1
17
10
12
16
13
15
6
4
14

Артикул

Название

Примечание

Количество

1

47131256

DRIVE SHAFT,26T, 12T, 22T

540/1000 RPM

1шт.

1

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

Not Shown

1шт.

2

87308746

PTO SHAFT,21T, 60T, 236.6mm L

1шт.

3

5198197

SEAL,10.00mm ID x 22.00mm OD x 7.50mm

10 x 22 x 7.5

1шт.

4

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

5

47132124

CIRCLIP,M70

D=70

1шт.

6

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70x125x24

1шт.

7

11076176

SNAP RING,M125, Int

1шт.

8

47131734

RETAINER COLLAR,70mm ID x 93mm OD x 6.7mm Thk

1шт.

9

5197553

GEAR,24T, 62T

1шт.

10

5197550

GEAR,26T Internal / 24T External

1шт.

11

5145798

SYNCHRONIZER,24T

1шт.

12

5197554

GEAR

1шт.

13

5149115

BUSHING,49.4mm ID x 60mm OD x 35mm L

1шт.

14

5182629

ANTI-WRAP PLATE

1шт.

15

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

16

5147930

RING NUT,M45 x 1.5

M45x1.5

1шт.

17

87306972

PIN,19mm OD x 120.5mm L

120.5mm L.

1шт.

Выбрано товаров: 18
