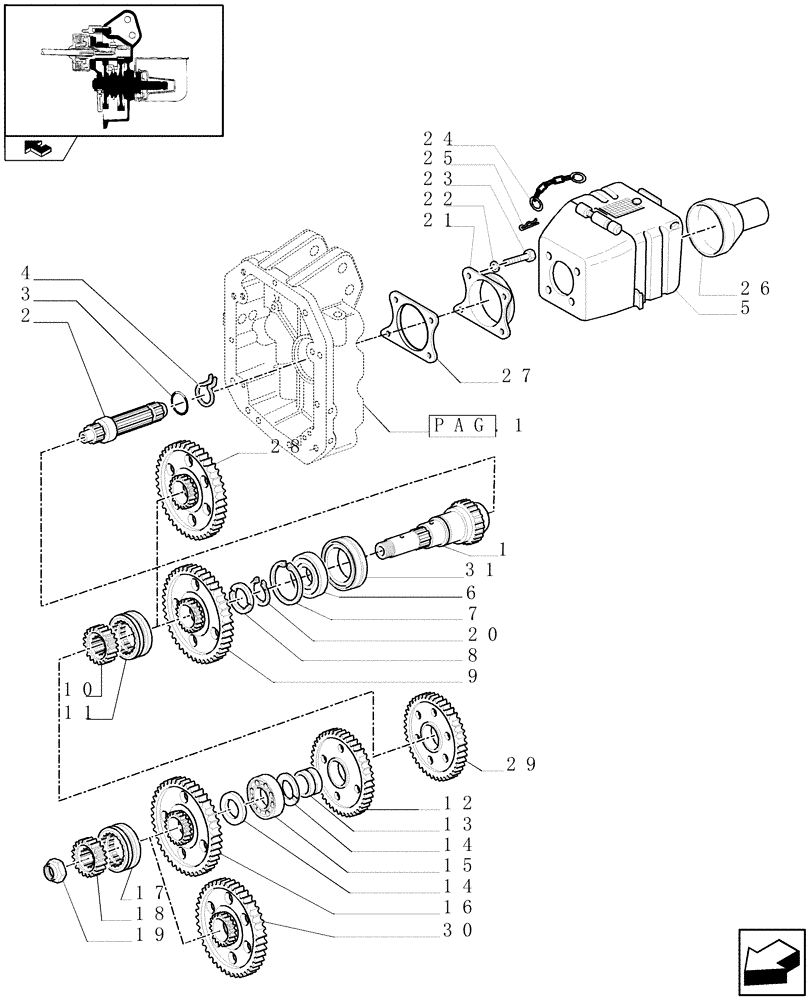

Запчасти Case IH PUMA 140 (1.80.1[02]) - POWER TAKE-OFF 540/750/1000 RPM - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

540/750/1000 RPM

1шт.

2

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM, 20 Splines

1шт.

2

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM, 21 Splines

1шт.

W/VAR.330809

1шт.

3

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

2.62 x 56.82

1шт.

4

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

5

82024034

GUARD

Incl.24,25

1шт.

6

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65 x 120 x 23

1шт.

7

11075976

SNAP RING,M120, Int

1шт.

8

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

1шт.

9

5192158

GEAR

, Serial Range: -C5904

1шт.

PUMA115, PUMA125, PUMA140

1шт.

9

5196193

GEAR

, Serial Range: -C5904

1шт.

PUMA155

1шт.

10

5151488

DRIVE BUSHING

, Serial Range: -C5904

1шт.

10

87578128

GEAR,21T Internal / 33T External

, Start Serial: D5904

1шт.

11

5129513

SYNCHRONIZER,24T

, Serial Range: -C5904

1шт.

11

87578126

SLEEVE,Z12

, Start Serial: D5904

2шт.

12

5192227

GEAR

, Serial Range: -C5904

1шт.

PUMA115, PUMA125, PUMA140

1шт.

12

87373869

GEAR

, Serial Range: -C5904

1шт.

PUMA155

1шт.

13

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

1шт.

14

5192170

ANTI-WRAP PLATE

2шт.

15

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40 x 90 x 23

1шт.

16

5197558

GEAR

, Serial Range: -C5904

1шт.

PUMA115, PUMA125, PUMA140

1шт.

16

87373886

GEAR

, Serial Range: -C5904

1шт.

PUMA155

1шт.

17

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

, Serial Range: -C5904

1шт.

18

5130550

PINION,28T / 12T

, Serial Range: -C5904

1шт.

18

87578127

SLEEVE,Z12

, Start Serial: D5904

1шт.

19

5122985

NUT,Ring, M32, 1.5 Pitch

M32 x 1.5

1шт.

20

11070076

SNAP RING,M65, Ext

1шт.

20

5143130

SNAP RING,M60, Ext x 4mm

1шт.

21

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

22

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

23

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

24

82024033

CHAIN

1шт.

25

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

26

47125899

COVER,109mm L

1шт.

27

47131825

GUARD

1шт.

28

87578122

GEAR,Z62

, Start Serial: D5904

1шт.

PUMA115, PUMA125, PUMA140

1шт.

28

87678016

GEAR,Z62

, Start Serial: D5904

1шт.

PUMA155

1шт.

29

87578123

GEAR,Z63

, Start Serial: D5904

1шт.

PUMA115, PUMA125, PUMA140

1шт.

29

87678017

GEAR,Z63

, Start Serial: D5904

1шт.

PUMA155

1шт.

30

87578124

GEAR

, Start Serial: D5904

1шт.

PUMA115, PUMA125, PUMA140

1шт.

30

87678018

GEAR

, Start Serial: D5904

1шт.

PUMA155

1шт.

31

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80X100X10

1шт.
