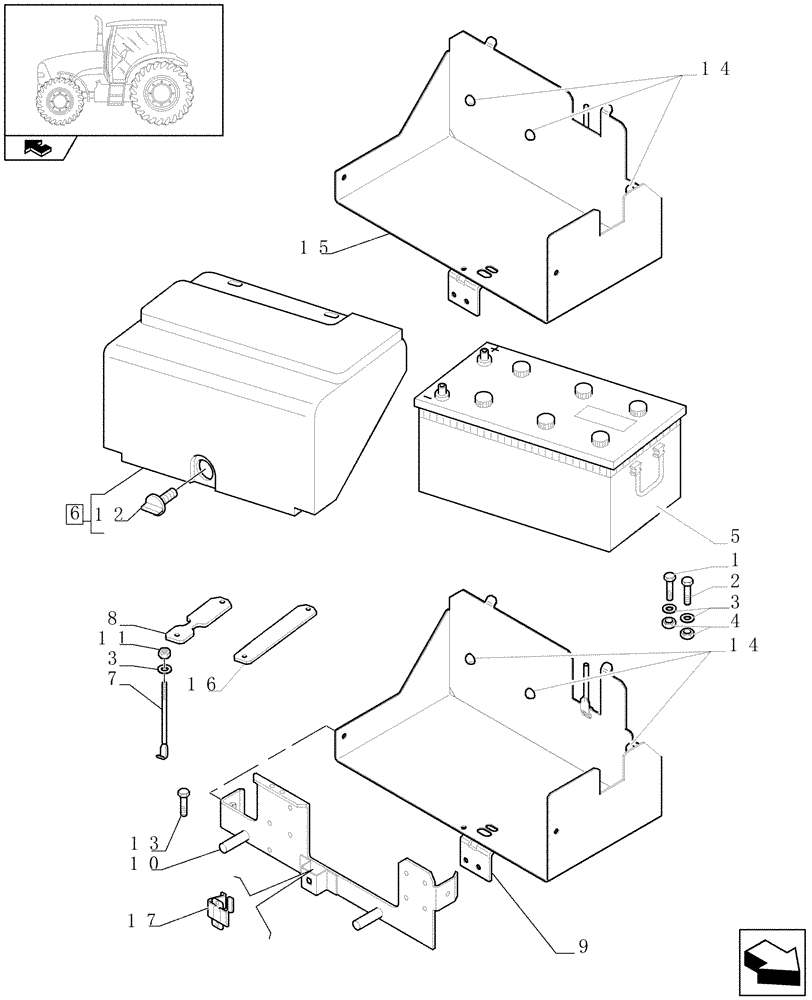

Запчасти Case IH PUMA 140 (1.74.2) - BATTERY AND BATTERY MOUNTING (06) - ELECTRICAL SYSTEMS

1

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

2

16046121

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

5

82027430

WET BATTERY,EN 50342-4 D5, 12V, 1300CCA

176 Ah - 1300 CCA

1шт.

6

82032836

BATTERY BOX

1шт.

7

82020168

ROD

235MM

1шт.

8

82020166

BRACKET

, Serial Range: -C6543

1шт.

9

84144598

BATTERY BOX

, Serial Range: -C6543

1шт.

10

87579915

TRAY

Incl. 17

1шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

12

81866169

LATCH

ASSY

1шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

14

81869893

SUPPORT

3шт.

15

84202965

BATTERY BOX

Incl.14, Start Serial: D6543

1шт.

16

84236279

PLATE

, Start Serial: D6543

1шт.

17

9840986

CLIP

1шт.
