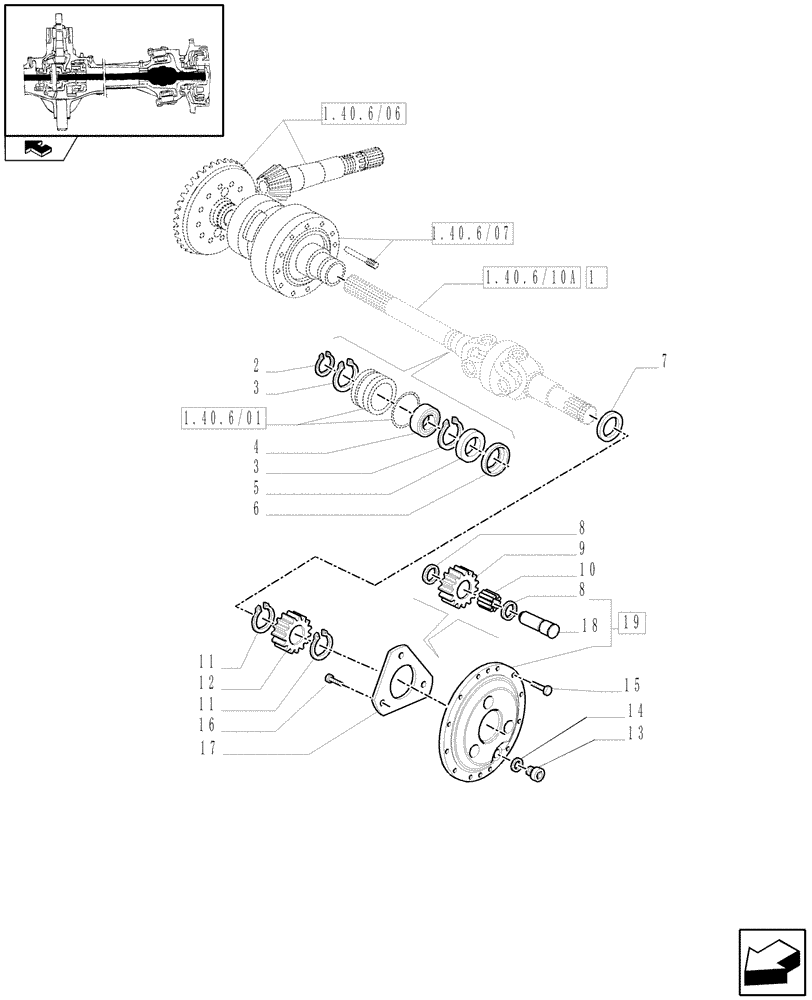

Запчасти Case IH PUMA 140 (1.40. 6/10[01]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - GEARS AND SHAFT - C6449 (VAR.330425) (04) - FRONT AXLE & STEERING

1

87611589

DRIVE SHAFT

ASSY, Right

1шт.

1

87611595

DRIVE SHAFT

ASSY, Left

1шт.

2

11068876

SNAP RING,M40, Ext

2шт.

3

11061376

SNAP RING,M68, Int

4шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40x68x15

2шт.

5

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

45x68x12

2шт.

6

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

7

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

42x62x21.5

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

6шт.

9

5145497

PLANETARY GEAR,25T

3шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

3шт.

11

5140018

SNAP RING,M30, Ext

D=30

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

14

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

15

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

16

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

17

5152324

LOCKING RING,4mm Thk

1шт.

18

87304540

PIN,30.3mm OD x 68mm L

68mm l.

3шт.

19

87310820

CARRIER,Planetary

1шт.
