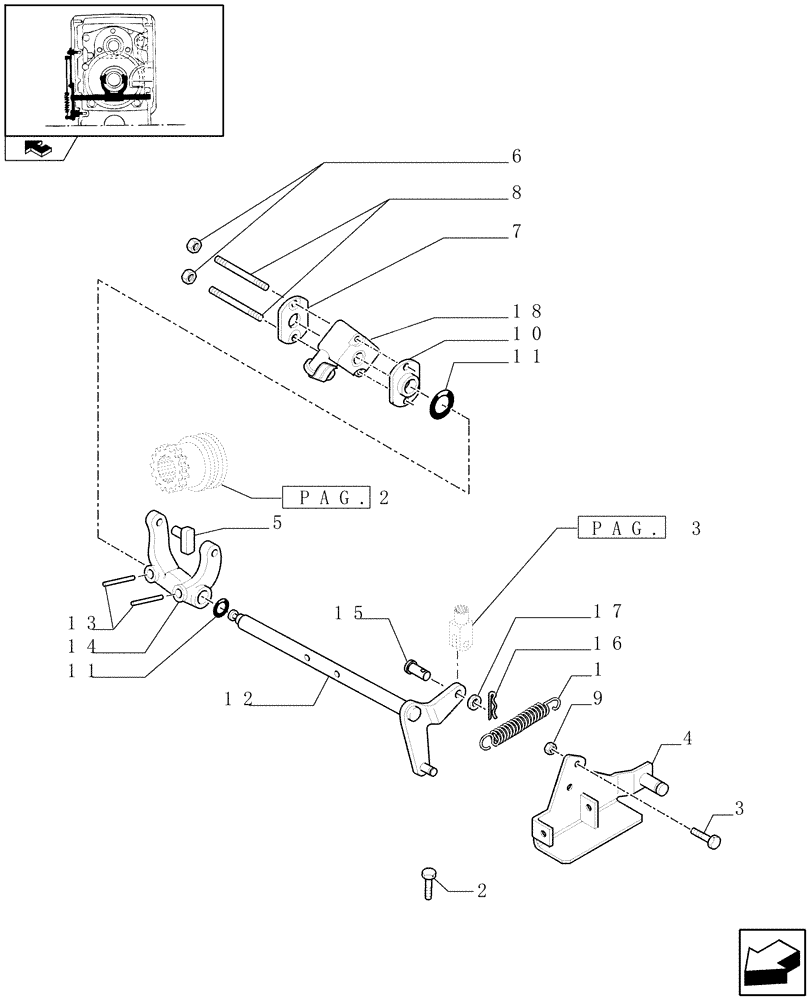

Запчасти Case IH PUMA 140 (1.32.3[01]) - CREEPER FOR TRANSMISSION 16X16/17X6/18X6/19X6 - REDUCTION UNIT CONTROLS (VAR.332330-335330) (03) - TRANSMISSION

1

84189604

TENSION SPRING,30mm OD x 120mm L

1шт.

2

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

M10x35

2шт.

3

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

87385624

BRACKET

1шт.

5

5152826

SLIDING PAD

2шт.

6

12577811

NUT,M5

2шт.

7

5178336

PLATE

COVER

1шт.

8

82014252

STUD,M5

2шт.

9

16100814

NUT,M8, Cl 8, DAC

2шт.

10

5188275

PLATE

BRACKET

1шт.

11

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

12

87302436

CONTROL LEVER

1шт.

13

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

14

5148321

LEVER

1шт.

15

10050811

PIN,8mm OD x 22mm L

1шт.

16

10734206

COTTER PIN,2mm OD x 12mm L

1шт.

17

13550301

WASHER

1шт.

18

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.
