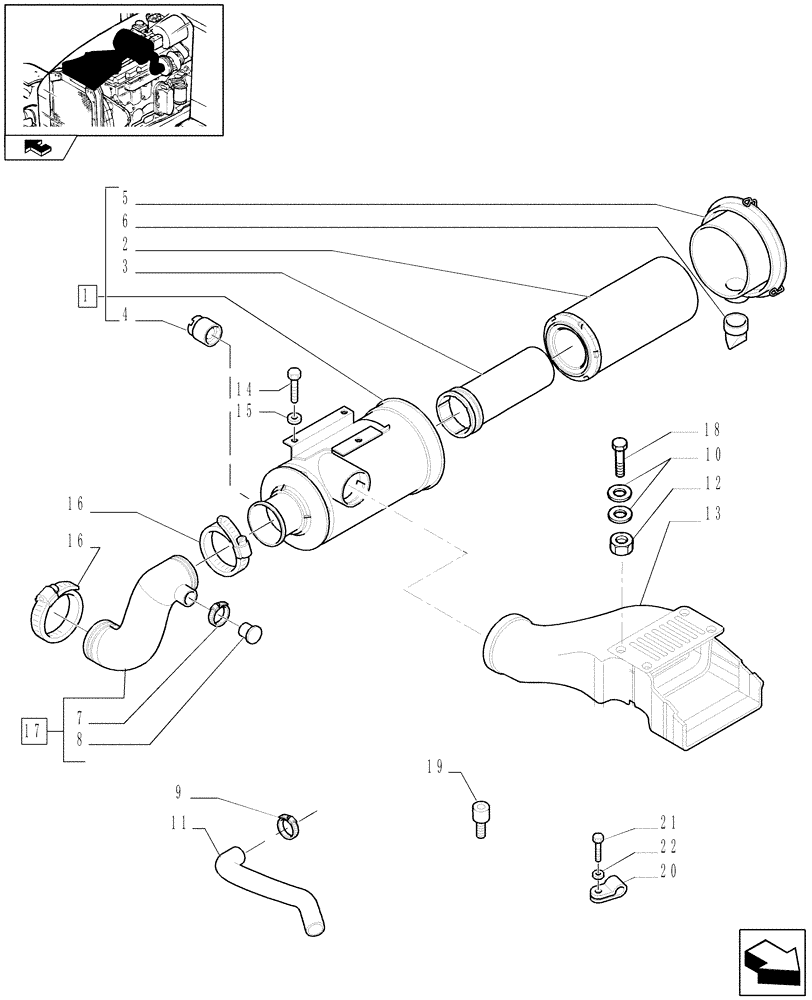

Запчасти Case IH PUMA 140 (1.19.1) - DRY AIR FILTER - PIPES (02) - ENGINE EQUIPMENT

1

82021483

AIR CLEANER

ASSY

1шт.

2

87704248

AIR FILTER,105.9mm ID x 207.6mm OD x 409.5mm L

Primary, Outer

1шт.

3

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Secondary, Inner

1шт.

4

82029621

INDICATOR

1шт.

5

87301833

COVER

1шт.

6

87301825

DUST VALVE

1шт.

7

13387570

HOSE CLAMP

34MM

1шт.

8

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

9

82039344

HOSE CLAMP,20mm - 32mm

20-32MM

2шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

8шт.

11

87312773

FLEXIBLE HOSE,212.00 mm x 22.23 mm ID, 28.00 mm ID

1шт.

12

15896211

NUT,M6, Cl 8

4шт.

13

87522437

DUCT

1шт.

14

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

16

82036460

HOSE CLAMP,110mm - 130mm, Worm Gear

100-120MM

2шт.

17

87312771

CONDUIT

ASSY, Serial Range: -C6231

1шт.

17

84131841

CONDUIT

, Start Serial: D6231

1шт.

18

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

19

87344666

ISOLATOR

4шт.

20

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

21

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

22

10523404

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.
