Запчасти Case IH PUMA 130 (90.160.11[01A]) - VAR - 331515, 331827, 332827, 743710, 743729 - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - ISO - D9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

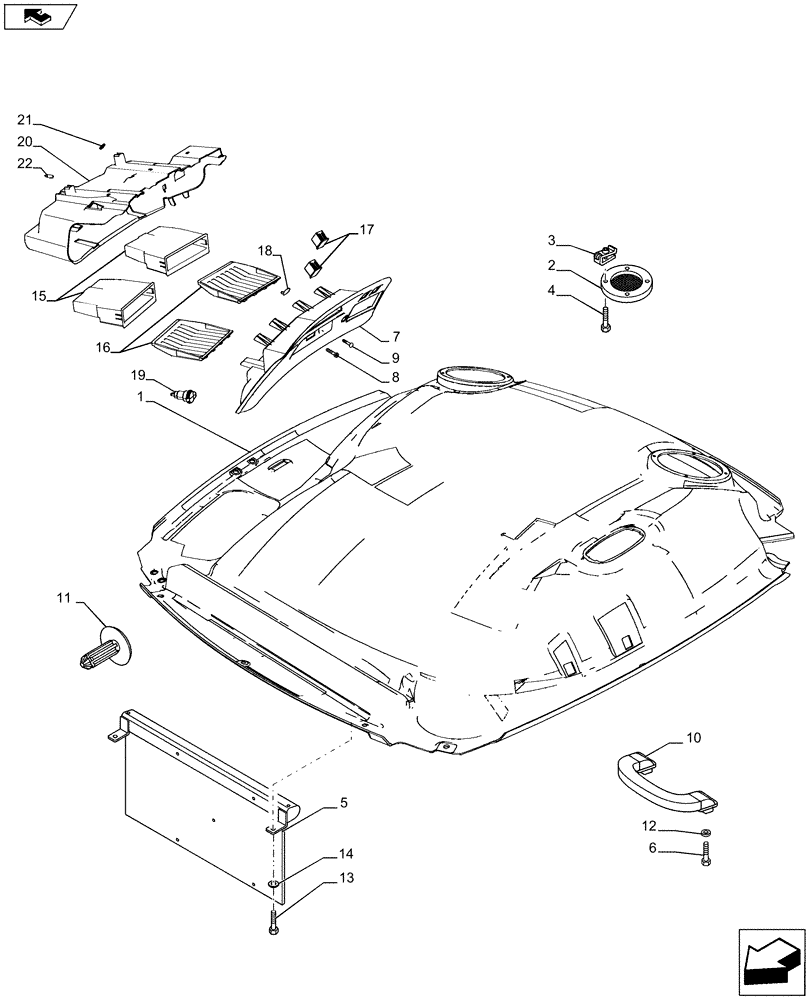

Схема запчастей Case IH PUMA 130 - (90.160.11[01A]) - VAR - 331515, 331827, 332827, 743710, 743729 - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - ISO - D9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
10
17
home
2
22
3
6
16
15
7
12
9
18
5
14
1
8
13
11
20
4
21

Артикул

Название

Примечание

Количество

1

47365206

HEADLINER

1шт.

2

82022875

GRILLE,185mm OD

Speaker

2шт.

3

81872135

NUT,Retaining, M4.20

8шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

47388509

BEZEL

, Serial Range: -C7408

1шт.

7

47363735

BEZEL

, Serial Range: -C7408

1шт.

Telescopic/Heated/Remote Adjust Mirrors for Roof less High Visibility Panel, VAR.331827 (Commercial Feature 743710)

1шт.

7

47575526

CONSOLE

, Serial Range: D7408-C7410

1шт.

7

47406288

CONSOLE

, Serial Range: D7408-C7410

1шт.

Telescopic/Heated/Remote Adjust Mirrors for Roof less High Visibility Panel, VAR.331827 (Commercial Feature 743710)

1шт.

7

47778962

CONSOLE

, Start Serial: D7410

1шт.

7

47778953

CONSOLE

, Start Serial: D7410

1шт.

Telescopic/Heated/Remote Adjust Mirrors for Roof less High Visibility Panel, VAR.331827 (Commercial Feature 743710)

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

7шт.

9

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

5шт.

10

84227380

HANDLE

1шт.

11

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

12

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

13

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

14

12605274

WASHER

2шт.

15

47364183

BOX

2шт.

16

47470835

INSERT

2шт.

17

82022763

PLUG

2шт.

18

47363750

PLUG,23.1mm OD

1шт.

19

84320279

CIGARETTE LIGHTER

1шт.

20

47378856

CAB STORAGE BOX

Incl 8 (Qty 3), 21, 22, Serial Range: -C7408

1шт.

Base Colour ISO for High Roof less Visibility Panel, VAR.331515 (Commercial Feature 743729)

1шт.

20

47718243

BEZEL

Incl 8 (Qty 3), 21, 22, Start Serial: D7408

1шт.

Base Colour ISO for High Roof less Visibility Panel, VAR.331515 (Commercial Feature 743729)

1шт.

21

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

Base Colour ISO for High Roof less Visibility Panel, VAR.331515 (Commercial Feature 743729)

1шт.

22

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

3шт.

Base Colour ISO for High Roof less Visibility Panel, VAR.331515 (Commercial Feature 743729)

1шт.

Выбрано товаров: 35
