Запчасти Case IH PUMA 130 (90.150.07[01]) - VAR - 331515, 743729 - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - ROOF - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

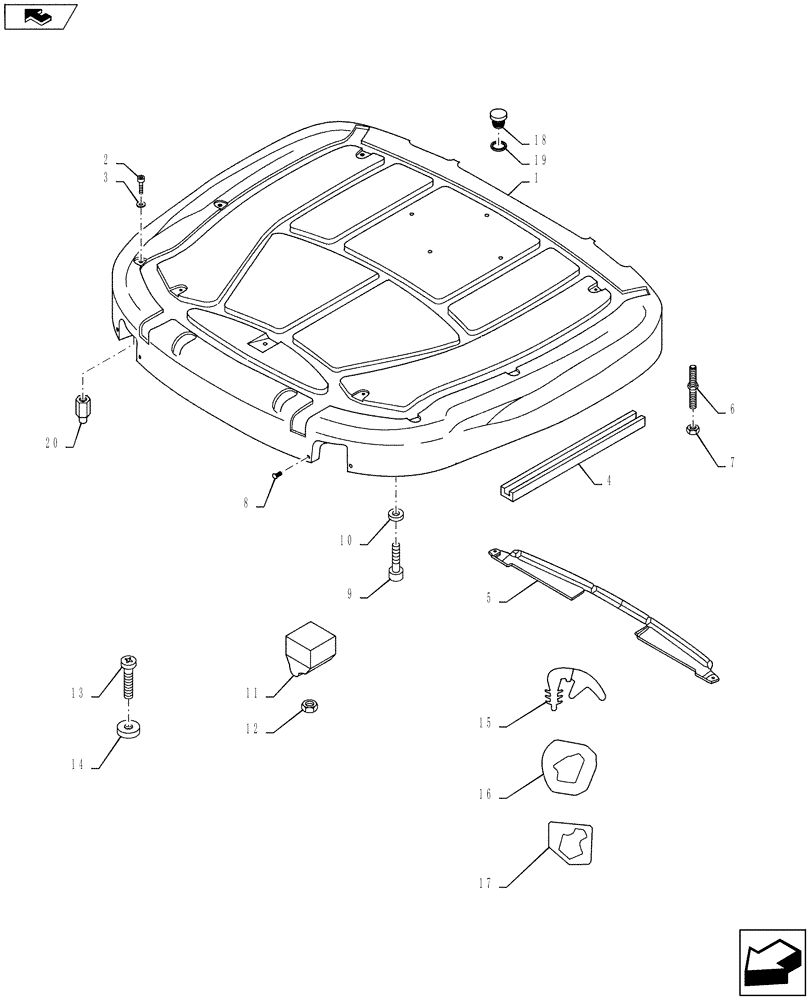

Схема запчастей Case IH PUMA 130 - (90.150.07[01]) - VAR - 331515, 743729 - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - ROOF - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
11
8
14
13
home
5
19
2
16
6
7
4
9
12
10
3
18
1
17
15

Артикул

Название

Примечание

Количество

1

84316054

ROOF

1шт.

2

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

3

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

8шт.

3

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

4

82028318

SEAL

1шт.

5

87570853

COVER

Underside

1шт.

6

82034115

STUD

2шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

8

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

11шт.

9

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

82036366

SEAL,21mm W x 5000mm L

Sealing Tape

1шт.

12

83935425

SPRING NUT,Prev Torque, #8

4шт.

13

84187830

SCREW,Torx, Pan HD, M4.2 x 1.4 x 13mm

6шт.

14

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

6шт.

15

82034370

SEAL

1шт.

16

82023417

GASKET,10mm Thk, Black

RH, A Pillar

1шт.

17

82038033

GASKET,10mm Thk

RH, C Pillar

1шт.

17

82038034

INSULATION

LH, C Pillar

1шт.

18

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

1шт.

19

87540957

RUBBER SEAL,1500mm L

, Serial Range: -C9017

1шт.

20

82034114

SPACER,M6 x 25mm L

8шт.

Выбрано товаров: 22
