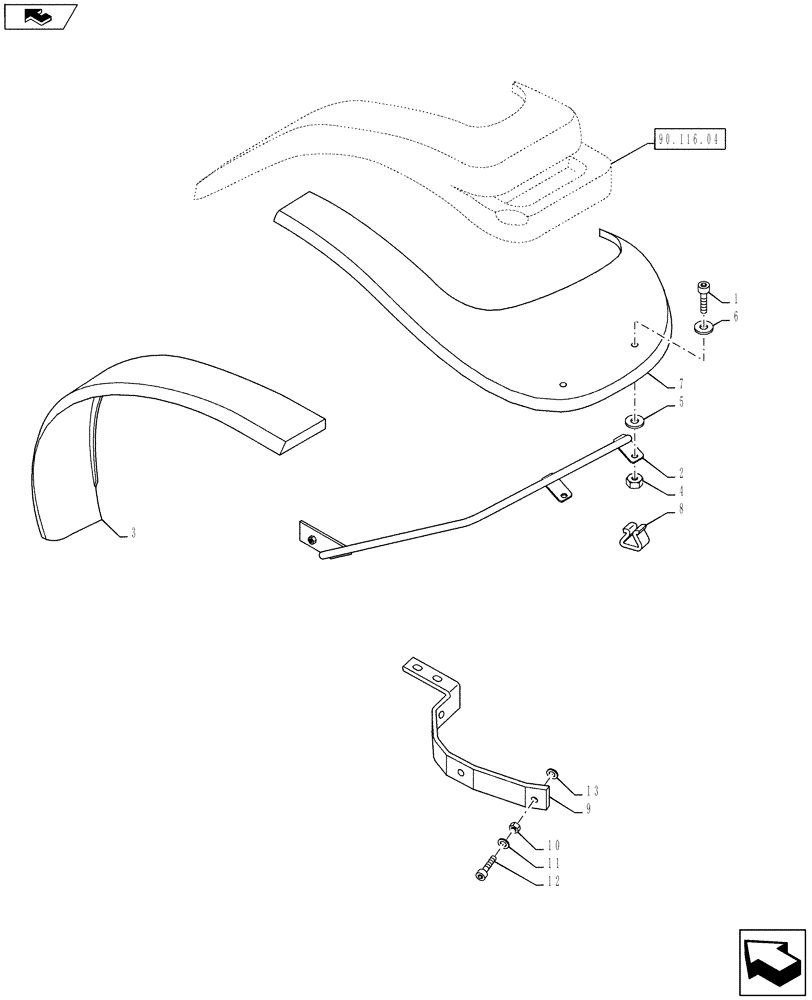

Запчасти Case IH PUMA 130 (90.116.08) - REAR FENDERS EXTENSIONS FOR NARROW FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

83990985

BOLT,M8 x 1.25 x 25mm

4шт.

2

82035422

SUPPORT

RH

1шт.

2

82035424

SUPPORT

LH

1шт.

3

82036146

FENDER EXTENSION

RH, Side

1шт.

3

82036148

FENDER EXTENSION

LH, Side

1шт.

4

16104511

NUT,M8 x 1.25, Cl 8.8

4шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

5

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

6

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

4шт.

7

87327426

FENDER EXTENSION

RH, Rear

1шт.

7

87327425

FENDER EXTENSION

LH, Rear

1шт.

8

82010838

SPRING CLIP,0.5mm Thk

28шт.

9

82037055

SUPPORT

RH

1шт.

9

82037057

SUPPORT

LH

1шт.

10

15896211

NUT,M6, Cl 8

8шт.

11

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

16шт.

12

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

8шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
