Запчасти Case IH PUMA 130 (90.116.04[01]) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

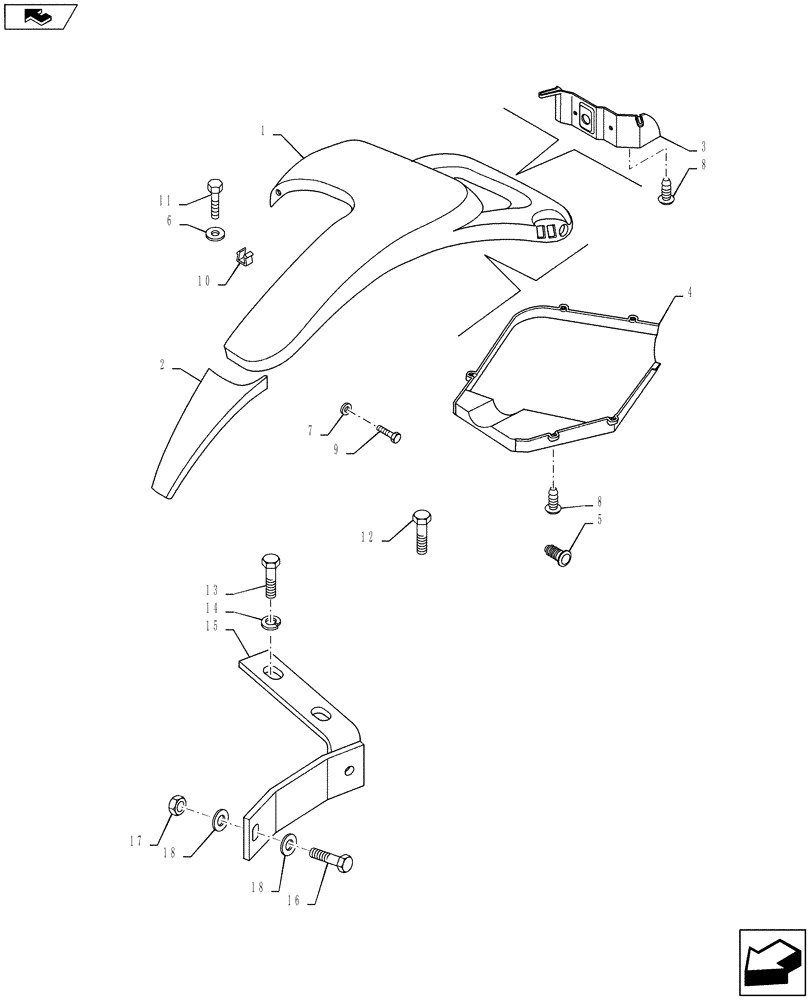

Схема запчастей Case IH PUMA 130 - (90.116.04[01]) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
11
18
13
2
home
5
8
10
18
7
3
8
14
4
15
6
12
17
1
16

Артикул

Название

Примечание

Количество

1

87554853

REAR FENDER

LH, Red

1шт.

1

87554854

REAR FENDER

RH, Red

1шт.

1

87568056

REAR FENDER

LH, Black

1шт.

1

87568057

REAR FENDER

RH, Black

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

6

12628921

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

14шт.

8

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

20шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

10шт.

10

82010838

SPRING CLIP,0.5mm Thk

6шт.

11

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

12

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

14

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

15

82037053

SUPPORT

1шт.

15

82037051

SUPPORT

1шт.

16

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

17

15896211

NUT,M6, Cl 8

2шт.

18

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

Выбрано товаров: 25
