Запчасти Case IH PUMA 130 (90.108.07[02]) - VAR - 330007, 335007, 743726 - DECALS - NORTH AMERICA VERSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

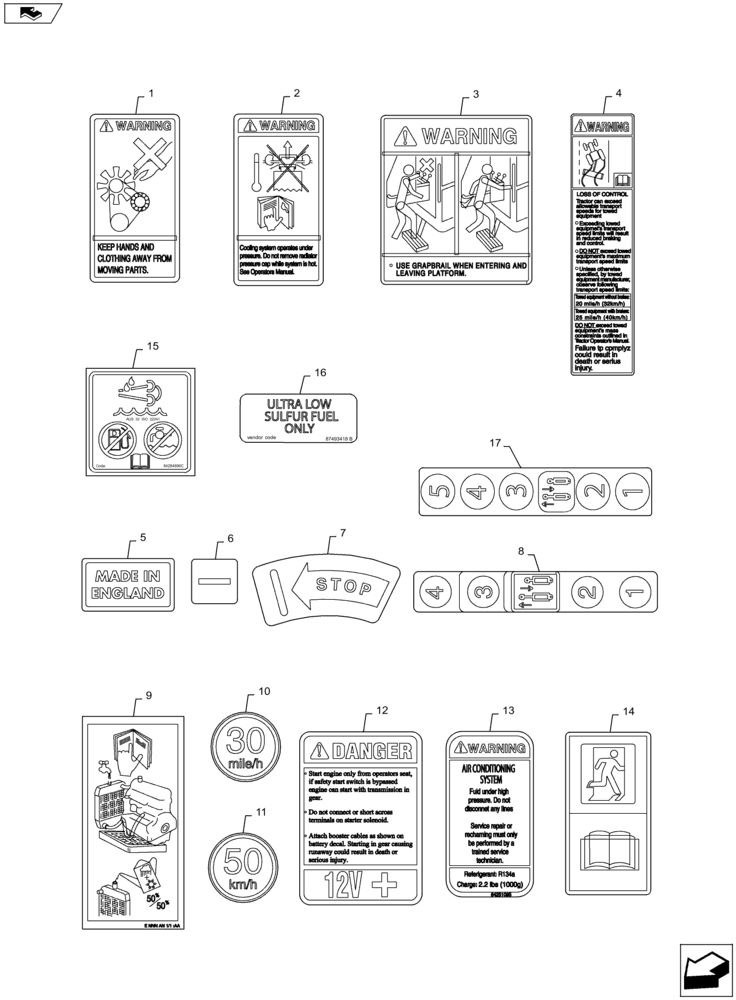

Схема запчастей Case IH PUMA 130 - (90.108.07[02]) - VAR - 330007, 335007, 743726 - DECALS - NORTH AMERICA VERSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
2
4
15
home
3
12
10
16
6
1
7
13
1
8
1
14
9
5

Артикул

Название

Примечание

Количество

1

82029538

DECAL

Warning, Fan

2шт.

2

82029421

WARNING DECAL

Radiator

2шт.

3

82030509

DECAL

Warning, Instructions

1шт.

4

84153083

WARNING DECAL

Loss of Control

1шт.

5

81858824

DECAL

Country of Origin

1шт.

6

87524725

DECAL

Jump Start Terminal

1шт.

7

87556492

DECAL

Fuel Shut-off, Stop Engine

1шт.

8

82034262

DECAL

Hyd Remote Control Valve, Serial Range: -C7165

1шт.

9

82015448

DECAL

Coolant Level

1шт.

10

87522628

DECAL

30 MPH

1шт.

11

87651332

DECAL

50 KPH

1шт.

12

87557437

DECAL

Start Engine Only from Operator's Seat

1шт.

13

84251095

DECAL

Air Conditioning

1шт.

14

87390270

DECAL

Excape Door Warning

1шт.

15

84284896

DECAL,DEF TANK identification label

1шт.

16

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfur Fuel

1шт.

17

84535717

DECAL

, Start Serial: D7165

1шт.

Выбрано товаров: 17
