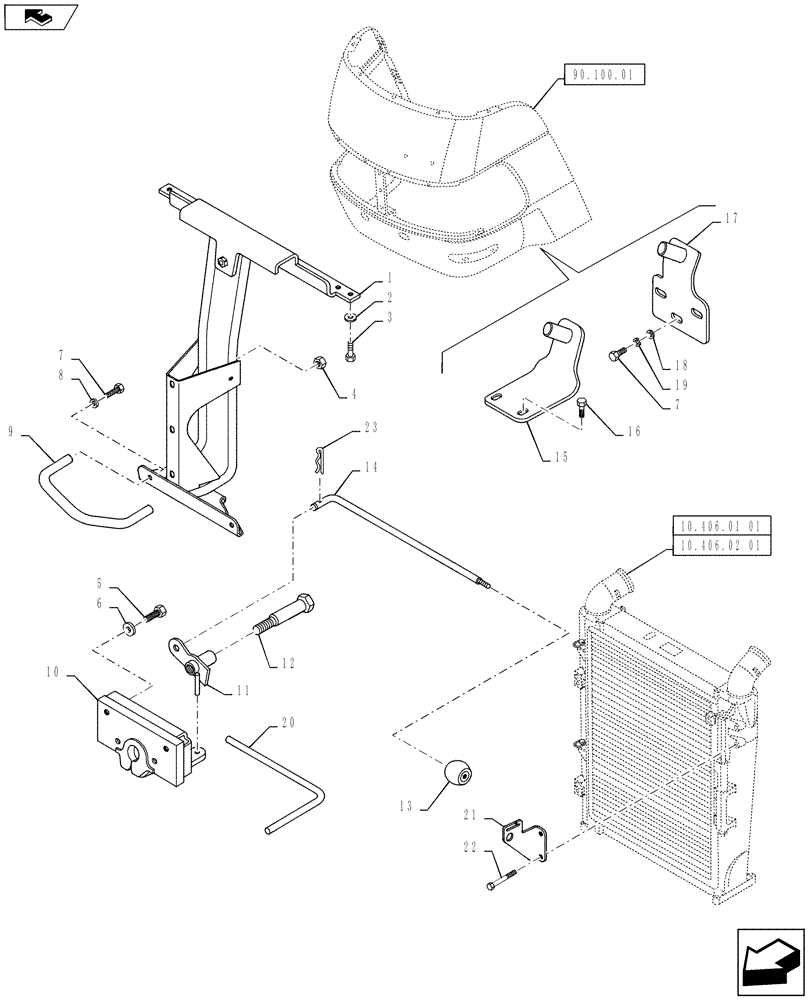

Запчасти Case IH PUMA 130 (90.102.04) - LATCH, ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84150680

SUPPORT

Hood Latch

1шт.

2

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

3шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

5

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

3шт.

6

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

8

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

84151073

HANDLE

1шт.

10

87729381

LATCH

1шт.

11

84291127

PIVOT

1шт.

12

87301835

PIN,10mm OD x 76.6mm L

1шт.

13

84287785

BALL,5mm ID x 16mm OD

1шт.

14

84291129

ROD,M5

1шт.

15

87731091

BRACKET

Hood Latch, with Integrated Front HPL

1шт.

16

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

2шт.

17

87371243

BRACKET

Hood Latch, without Integrated Front HPL

1шт.

18

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

19

10516674

LOCK WASHER,M8

3шт.

20

84309099

ROD,6mm OD

Hood Release

1шт.

21

87566912

SUPPORT

1шт.

22

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

23

10734401

COTTER PIN,M2 x 22

1шт.
