Запчасти Case IH PUMA 130 (88.090.15[02]) - DIA KIT, PASSENGER SEAT WITH BELTS - BREAKDOWN (88) - ACCESSORIES

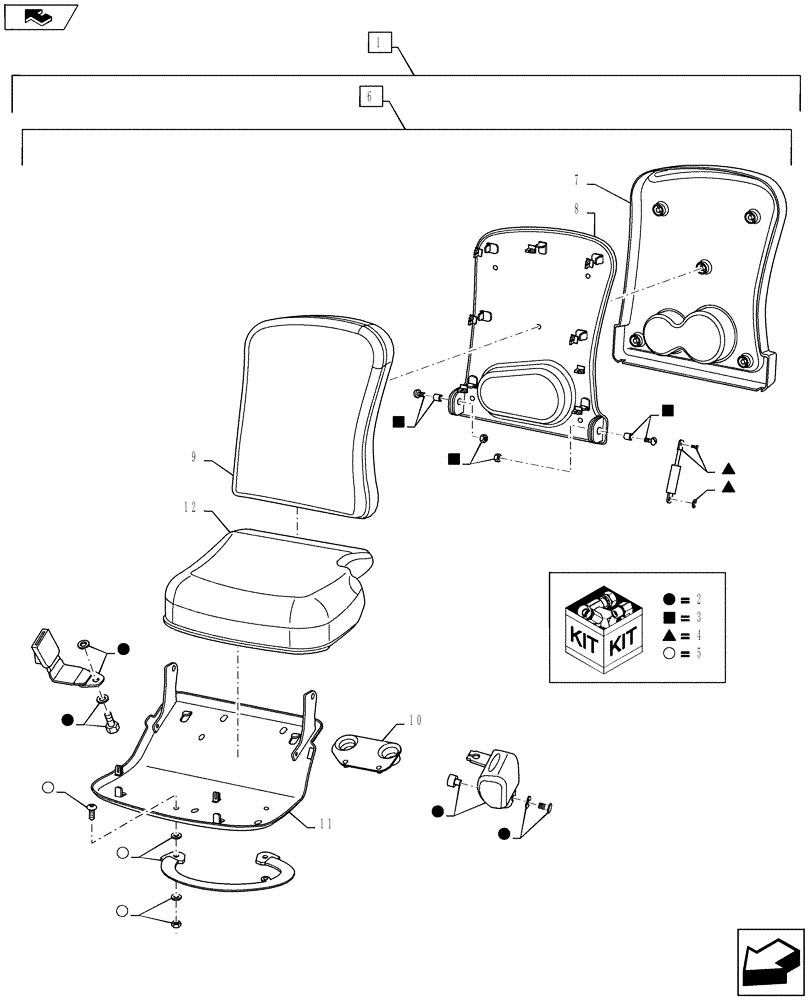

Схема запчастей Case IH PUMA 130 - (88.090.15[02]) - DIA KIT, PASSENGER SEAT WITH BELTS - BREAKDOWN (88) - ACCESSORIES
12
3
2
10
6
1
5
5
2
11
4
5
9
3
8
3
5
2
4
2
2
4
2
3
7
3
4
5
home

Артикул

Название

Примечание

Количество

1

710036074

DIA KIT, TRACTOR

Instructional Seat, Incl 6

1шт.

2

82033397

SERVICE KIT

Seat Belt

1шт.

3

82033403

SERVICE KIT

Pivot Bearing

1шт.

4

82033399

SERVICE KIT

Gas Strut

1шт.

5

82033405

KIT

Grab Handle

1шт.

6

87487002

SEAT

Incl 2 - 5 and 7 - 12

1шт.

7

82033401

KIT

Tray

1шт.

8

84146874

SEAT SUPPORT

Back Pan

1шт.

9

84146851

BACKREST

Back Cushion

1шт.

10

84146875

SEAT ACCESSORY

Cab Adaptor

1шт.

11

84146873

SEAT SUPPORT

Seat Pan

1шт.

12

84146864

SEAT CUSHION

Seat Cushion

1шт.

Выбрано товаров: 12
