Запчасти Case IH PUMA 130 (88.090.15[01]) - DIA KIT, PASSENGER SEAT WITH BELTS (88) - ACCESSORIES

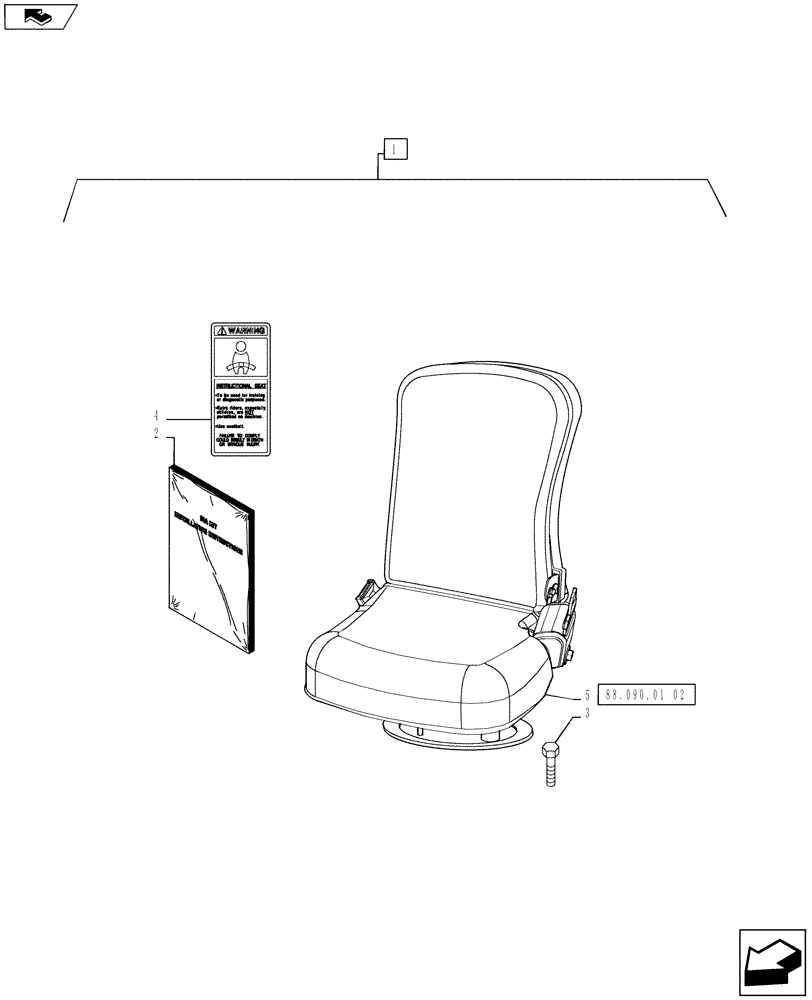

Схема запчастей Case IH PUMA 130 - (88.090.15[01]) - DIA KIT, PASSENGER SEAT WITH BELTS (88) - ACCESSORIES
4
5
3
home
2
1
88.090.01 02

Артикул

Название

Примечание

Количество

1

710036074

DIA KIT, TRACTOR

Instructional Seat, Incl 2 - 5

1шт.

2

84147891

INSTRUCTION

1шт.

3

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

6шт.

4

82030479

DECAL

English

1шт.

4

82030441

DECAL

French

1шт.

4

82030480

DECAL

Spanish

1шт.

5

87487002

SEAT

1шт.

Выбрано товаров: 7
