Запчасти Case IH PUMA 130 (88.090.07) - DIA KIT, REAR FENDER EXTENSIONS FOR FULL COVER FENDERS (150MM) (88) - ACCESSORIES

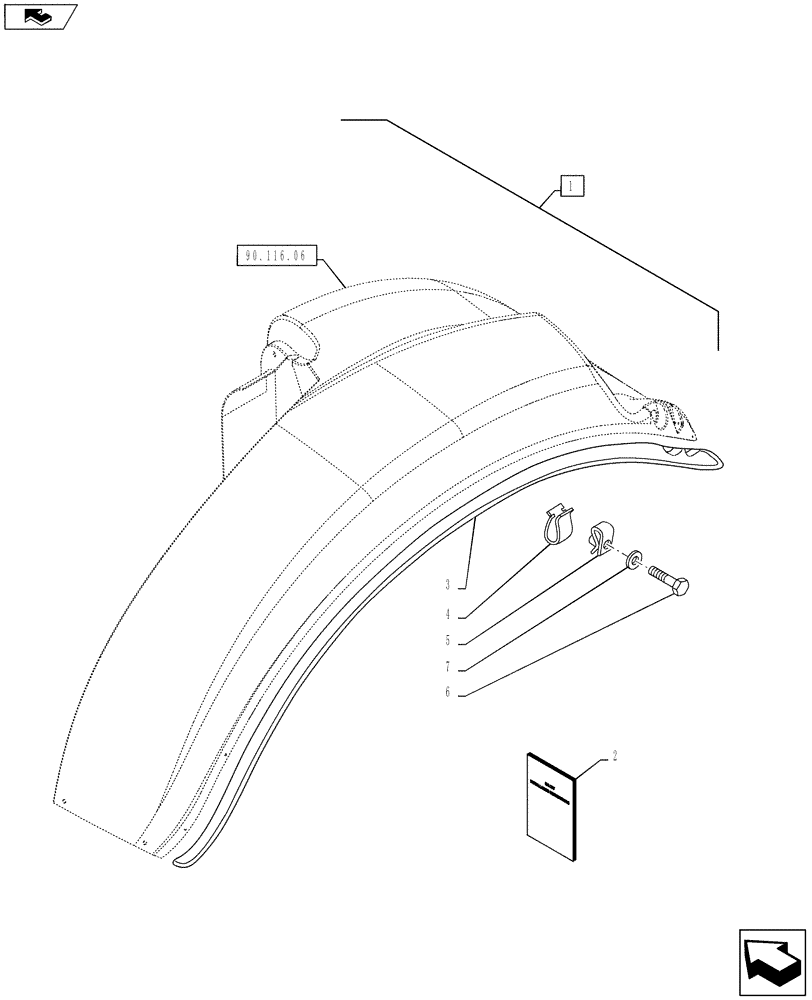

Схема запчастей Case IH PUMA 130 - (88.090.07) - DIA KIT, REAR FENDER EXTENSIONS FOR FULL COVER FENDERS (150MM) (88) - ACCESSORIES
2
90.116.06
home
1
7
3
4
6
5

Артикул

Название

Примечание

Количество

1

718601014

DIA KIT, TRACTOR

Rear Fender Extensions for full Cover Fenders 150mm, Incl 2 - 7

1шт.

2

87473222

INSTRUCTION

2шт.

3

84349869

FENDER EXTENSION

LH

1шт.

3

84349870

FENDER EXTENSION

RH

1шт.

4

87622826

SPRING CLIP,0.5mm Thk

14шт.

5

86509265

NUT,M5, Cl 10

8шт.

6

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

8шт.

7

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

16шт.

Выбрано товаров: 8
