Запчасти Case IH PUMA 130 (88.055.11) - DIA KIT, ISOBUS HARNESS AND SOCKET (88) - ACCESSORIES

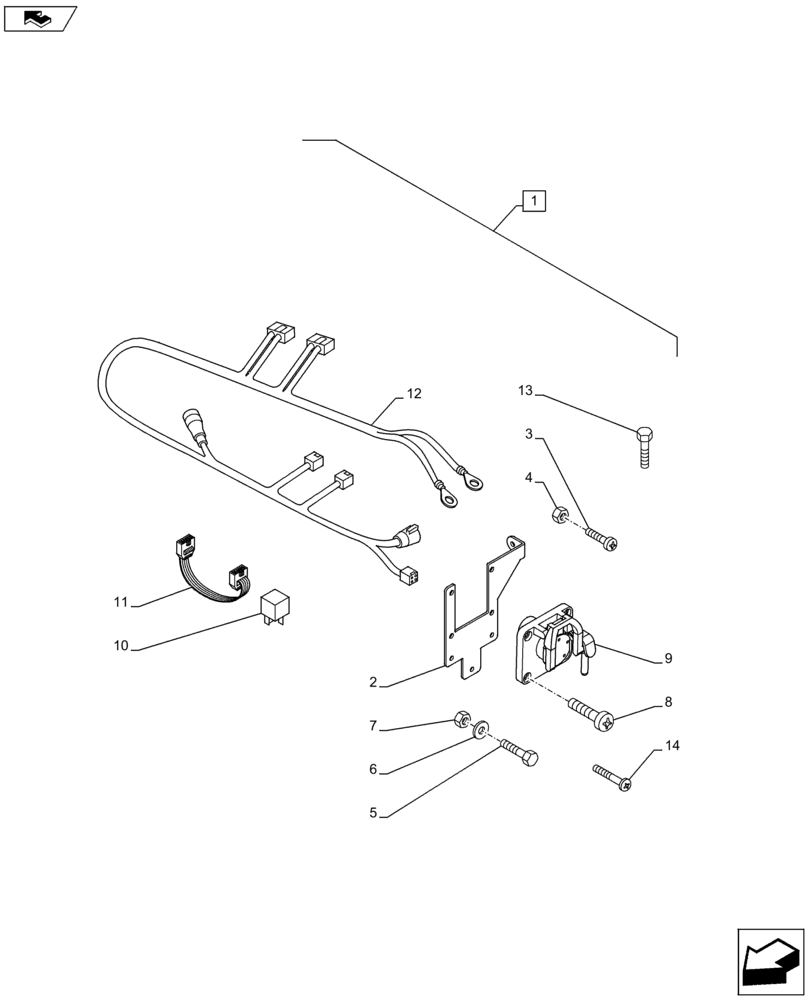

Схема запчастей Case IH PUMA 130 - (88.055.11) - DIA KIT, ISOBUS HARNESS AND SOCKET (88) - ACCESSORIES
13
12
home
11
3
2
1
6
5
10
4
8
14
9
7

Артикул

Название

Примечание

Количество

1

719344064

DIA KIT, TRACTOR

Isobus Harness and Socket, Incl 2 - 14

1шт.

2

84384570

SUPPORT

1шт.

3

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

4

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

10571579

LOCK WASHER,M6

4шт.

7

15896211

NUT,M6, Cl 8

4шт.

8

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

4шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breakaway

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

Link Lead

1шт.

12

84342435

WIRE HARNESS

Isobus Power

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

14

84346912

SCREW,Torx, Pan HD, M4 x 55mm, Cl 4.8

2шт.

Выбрано товаров: 14
