Запчасти Case IH PUMA 130 (88.037.06[02]) - DIA KIT, AUTOMATIC PICK UP HITCH WITH HYDR PUSH BACK (88) - ACCESSORIES

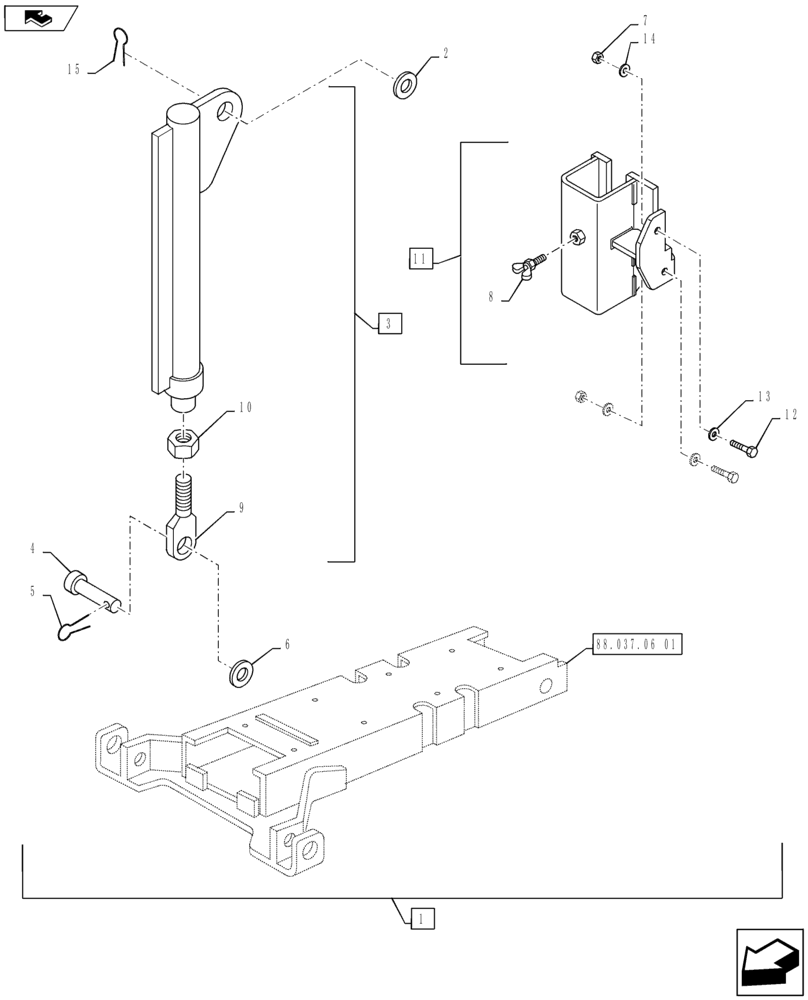

Схема запчастей Case IH PUMA 130 - (88.037.06[02]) - DIA KIT, AUTOMATIC PICK UP HITCH WITH HYDR PUSH BACK (88) - ACCESSORIES
9
12
6
home
88.037.06 01
3
4
14
88.037.06
8
11
2
1
15
5
10
13
7

Артикул

Название

Примечание

Количество

1

710086054

DIA KIT, TRACTOR

Hydraulic Push Back Hitch, EDC 80mm Rams, Incl 2 - 15. Kit Incl figures 88.037.06 01 - 03

1шт.

2

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

3

82036641

LIFTING ROD

Incl 9, 10

2шт.

4

82036627

PIN,25mm OD x 70mm L

2шт.

5

81868739

COTTER PIN

2шт.

6

9825305

WASHER,25.65mm ID x 46.43mm OD x 3.17mm Thk

2шт.

7

43362

NUT,M8 x 1.25, Cl 10

4шт.

8

82039554

WING NUT,Screw, M10 x 20.00mm, STL, ZND

1шт.

9

82012780

CLEVIS,M18

1шт.

10

10703211

THIN NUT,Thin, M18 x 1.5, Cl R04

1шт.

11

84227334

SUPPORT

Incl 8

1шт.

12

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

140160

WASHER,8.20mm ID x 14.00mm OD x 0.80mm, 2.40mm

4шт.

15

10797801

COTTER PIN,M6.3 x 50.00mm

2шт.

Выбрано товаров: 15
