Запчасти Case IH PUMA 130 (88.037.06[01]) - DIA KIT, AUTOMATIC PICK UP HITCH WITH HYDR PUSH BACK (88) - ACCESSORIES

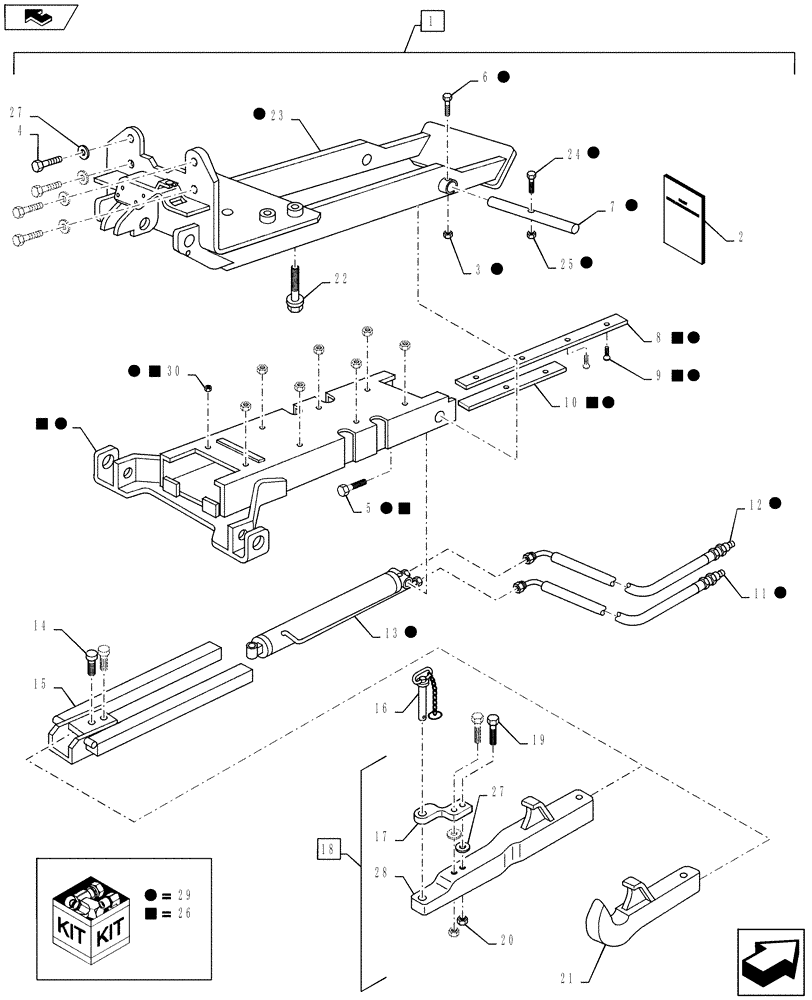

Схема запчастей Case IH PUMA 130 - (88.037.06[01]) - DIA KIT, AUTOMATIC PICK UP HITCH WITH HYDR PUSH BACK (88) - ACCESSORIES
26
23
11
3
4
29
29
28
29
29
29
29
12
29
26
29
20
8
29
22
26
2
home
29
29
29
26
27
25
29
13
14
21
10
16
24
26
1
5
29
17
26
7
9
30
18
19
26
26
29
6
29
29
27
15

Артикул

Название

Примечание

Количество

1

710086054

DIA KIT, TRACTOR

Hydraulic Push Back Hitch, EDC 80mm Rams, Incl 2 - 30. Kit Incl figures 88.037.06 01 - 03

1шт.

2

84279784

INSTRUCTION

1шт.

3

16104131

NUT,Hex, M8, 1.25mm Pitch

2шт.

4

15984334

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

5

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

2шт.

6

16040731

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9, Full Thd

2шт.

7

82036622

PIN,25mm OD x 287mm L

1шт.

8

82036613

SLIDE GUIDE

RH Top

1шт.

8

82036612

SLIDE GUIDE

LH Top

1шт.

9

10356321

SCREW,Sl Csk, M8 x 20mm, Cl 8.8

16шт.

10

82036279

SLIDE GUIDE,670mm L x 40mm W x 8mm Thk

RH

2шт.

10

82036278

SLIDE GUIDE

LH

2шт.

11

82036629

HYDRAULIC HOSE,9.50mm ID x 2000.00mm, SAE 100R16

Return, with Green Cap

1шт.

12

82036628

HYDRAULIC HOSE,9.50mm ID x 2000.00mm, SAE 100R16

Extension, with Red Cap

1шт.

13

82036196

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 390mm Stroke

1шт.

14

82036199

PIN,30mm OD x 87mm L

2шт.

15

87476076

DRAWBAR FRAME

1шт.

16

82025933

PIN,32mm OD x 180mm L

1шт.

17

82036534

BAR,251mm L x 60mm W x 30mm Thk, 50.8mm Offset

1шт.

18

87731771

DRAWBAR

Incl 17, 19, 20, 27, 28

1шт.

19

15985434

BOLT,M18 x 1.5 x 110mm

2шт.

20

10721034

NUT,M18 x 1.5

2шт.

21

87731770

DRAW HOOK

1шт.

22

87558079

BOLT,Flng, M18 x 1.5 x 125mm, Cl 12.9

1шт.

23

87482827

HITCH BRACKET

1шт.

24

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

25

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

26

87482830

HITCH BRACKET

Incl 2, 5, 8 - 10, 30

1шт.

27

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

28

87731775

DRAWBAR,672mm L x 70mm W x 60mm Thk, 15mm Offset

1шт.

29

87482826

HITCH

Hydraulic, Incl 2, 3, 5 - 13, 23 - 26, 30

1шт.

30

82038798

NUT,Hex, M8, 1.25mm Pitch, 8.00mm High, G8, ZND

16шт.

Выбрано товаров: 32
