Запчасти Case IH PUMA 130 (88.035.10) - DIA KIT, ADDITIONAL SLICE TO ELECTRONIC MID MOUNT VALVE (88) - ACCESSORIES

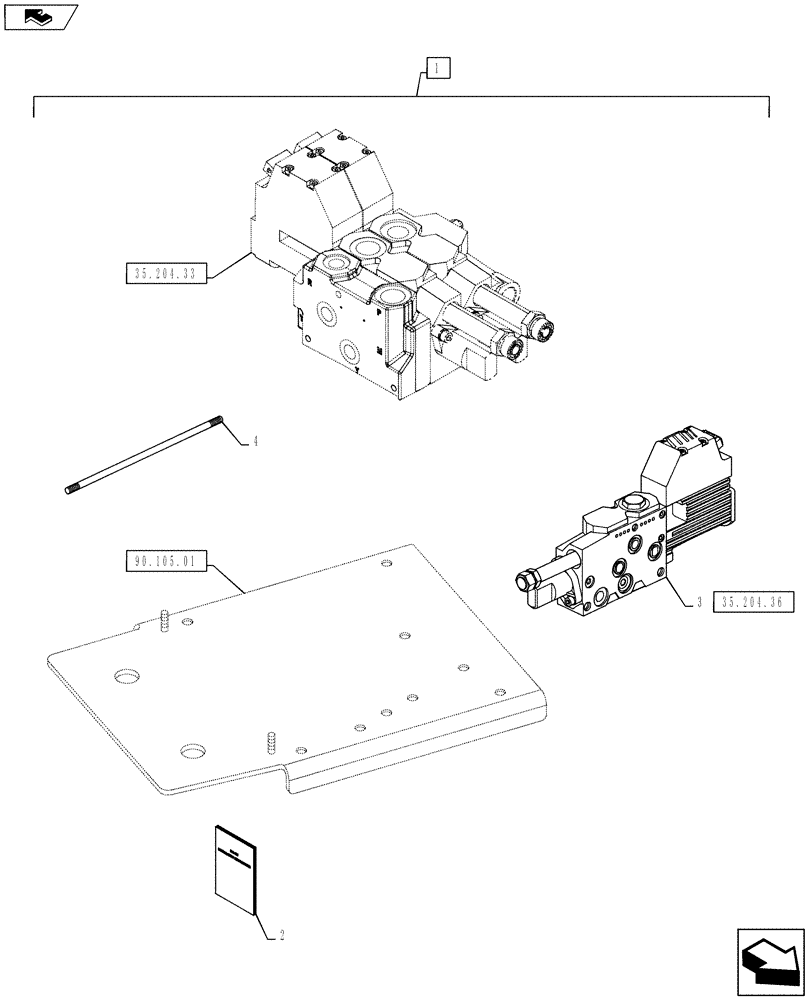

Схема запчастей Case IH PUMA 130 - (88.035.10) - DIA KIT, ADDITIONAL SLICE TO ELECTRONIC MID MOUNT VALVE (88) - ACCESSORIES
90.105.01
3
35.204.33
home
2
4
35.204.36
1

Артикул

Название

Примечание

Количество

1

718756014

DIA KIT, TRACTOR

Mid Mount Conversion Kit - Add 1 Slice to Electronic MMV, Incl 2 - 4

1шт.

2

84139527

INSTRUCTION

1шт.

3

84151263

ELECTRO-VALVE

1шт.

3

84151263R

REMAN-HYD VALVE

Reman for New PN 84151263

1шт.

3

84151263C

CORE-VALVE HYD

Return Number

1шт.

84214463R

REMAN-HYD VALVE

PUMA 130,PUMA 145, PUMA 160 all (1/11-), Reman For New P/N 84151263

1шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

4

87520006

TIE-ROD

3 Slice MMV

3шт.

4

87371933

TIE-ROD

4 Slice MMV

3шт.

Выбрано товаров: 9
