Запчасти Case IH PUMA 130 (88.035.09[03]) - DIA KIT, 2 ELECTRONIC MID MOUNTED VALVES - PIPES (88) - ACCESSORIES

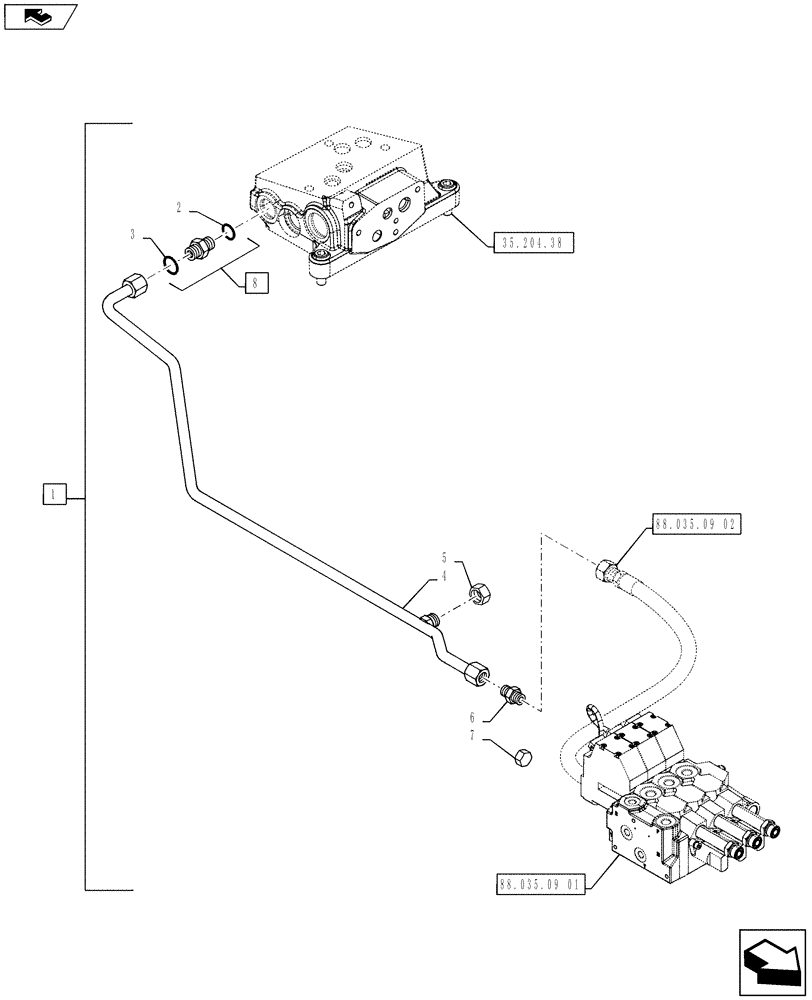

Схема запчастей Case IH PUMA 130 - (88.035.09[03]) - DIA KIT, 2 ELECTRONIC MID MOUNTED VALVES - PIPES (88) - ACCESSORIES
88.035.09 01
4
3
35.204.38
2
5
1
88.035.09 02
home
8
7
6

Артикул

Название

Примечание

Количество

1

719763044

DIA KIT, TRACTOR

Electronic Mid Mount Valve, 2 Slice, Joystick not Included. Incl 2 - 8. Kit Includes figures 88.035.09 01 - 04

1шт.

2

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

84402217

PRESSURE PIPE

1шт.

5

9840575

CAP,13/16" - 16 ORFS

1шт.

6

86978771

UNION,16mm L

1шт.

7

9840576

CAP,1" - 14 ORFS

1шт.

8

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 2, 3

1шт.

Выбрано товаров: 8
