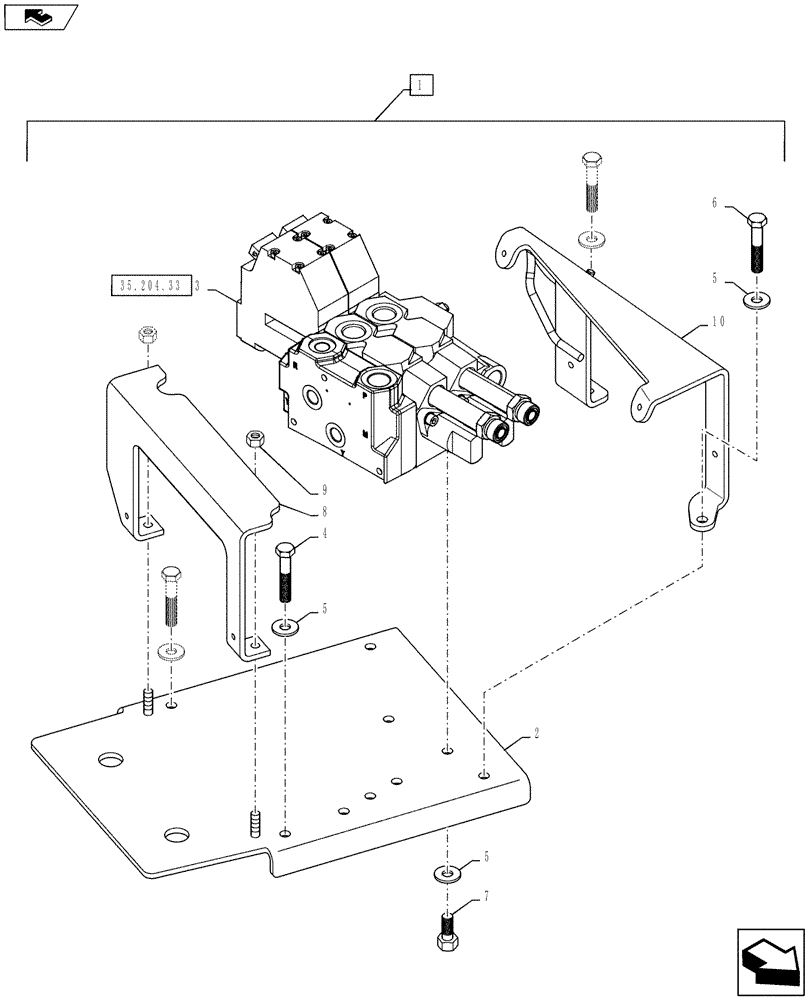

Запчасти Case IH PUMA 130 (88.035.09[01]) - DIA KIT, 2 ELECTRONIC MID MOUNTED VALVES - DISTRIBUTOR, AND SUPPORT (88) - ACCESSORIES

1

719763044

DIA KIT, TRACTOR

Electronic Mid Mount Valve, 2 Slice, Joystick not Included, Incl 2 - 10. Kit Incl figures 88.035.09 01 - 04

1шт.

2

84371300

SUPPORT

1шт.

3

84214464

CONTROL VALVE

EH Mid Mount, 2 Slice

1шт.

3

84214464R

REMAN-HYD VALVE

Reman Valve Assy EH Mid Mount, 2 Slice

1шт.

3

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

4

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

5

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

7шт.

6

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

8

84371293

SUPPORT

1шт.

9

86639231

NUT,M8, Cl 10

2шт.

10

84371290

SUPPORT

1шт.
