Запчасти Case IH PUMA 130 (88.035.03[01]) - DIA KIT, ADDITIONAL ELECTROHYDRAULIC REMOTE SLICE (3 TO 4) (88) - ACCESSORIES

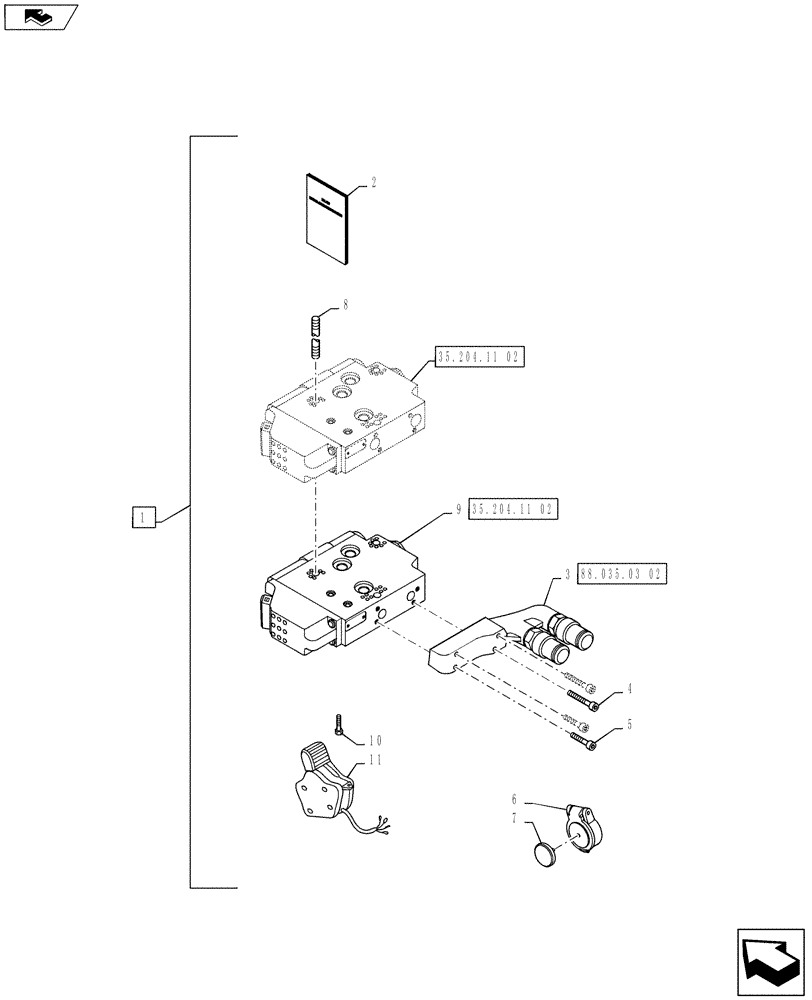

Схема запчастей Case IH PUMA 130 - (88.035.03[01]) - DIA KIT, ADDITIONAL ELECTROHYDRAULIC REMOTE SLICE (3 TO 4) (88) - ACCESSORIES
11
35.204.11 02
8
home
4
3
10
88.035.03 02
9
7
2
35.204.11 02
6
1
5

Артикул

Название

Примечание

Количество

1

719411134

DIA KIT, TRACTOR

One Additional Remote Electrohydraulic Configuration for GARU, Incl 2 - 11. Kit Includes figures 88.035.03 01 and 02

1шт.

2

84277710

INSTRUCTION

1шт.

3

87381965

QUICK MALE COUPLING

1шт.

4

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

5

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

6

82037721

DUST CAP

2шт.

7

82029895

DISC,20mm D, Black

Black

2шт.

8

47129473

THREADED TIE-ROD

3шт.

9

84230181

HYD VALVE SECTION

1шт.

10

50631

SCREW,Self Tapping, M6 x 0.5" OAL

1шт.

11

87486098

ROCKER SWITCH

EHR, Black

1шт.

Выбрано товаров: 11
