(88.035.02[03]) - DIA KIT, QUICK COUPLERS GROUP - BREAKDOWN

Запчасти Case IH PUMA 130 (88.035.02[03]) - DIA KIT, QUICK COUPLERS GROUP - BREAKDOWN (88) - ACCESSORIES

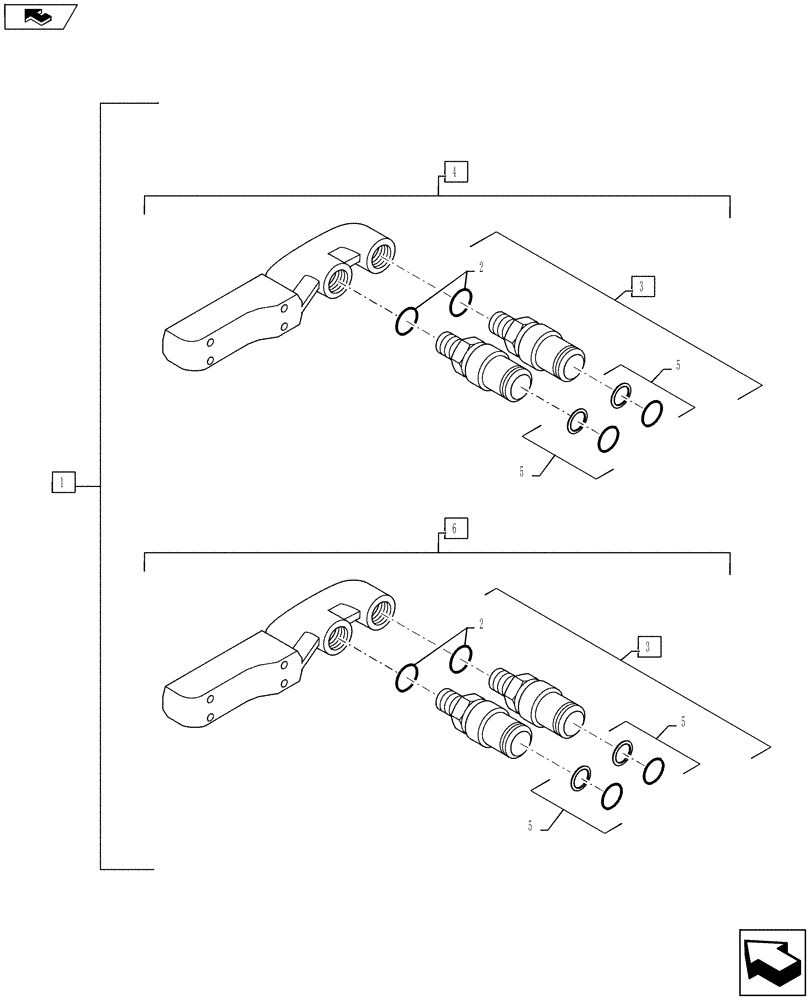

Схема запчастей Case IH PUMA 130 - (88.035.02[03]) - DIA KIT, QUICK COUPLERS GROUP - BREAKDOWN (88) - ACCESSORIES
4
6
5
2
1
5
5
2
3
5
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710024034

DIA KIT, TRACTOR

Two Additional Remotes, Mech Confuration for GARU, Incl 2 - 6. Kit Incl parts on figures 88.035.02 01 - 03

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

3

87381944

COUPLING, QUICK, FEM

Incl 2, 5

8шт.

4

87381965

QUICK MALE COUPLING

Incl 2, 3, 5

1шт.

5

87382012

SEAL KIT

Incl O-Ring and Backup Washer

2шт.

6

87381964

QUICK MALE COUPLING

Incl 2, 3, 5

1шт.

Выбрано товаров: 6
