Запчасти Case IH PUMA 130 (88.035.02[02]) - DIA KIT, 2 ADDITIONAL MECHANICAL CONFIGURATION REMOTES (2 TO 4) - LEVERS (88) - ACCESSORIES

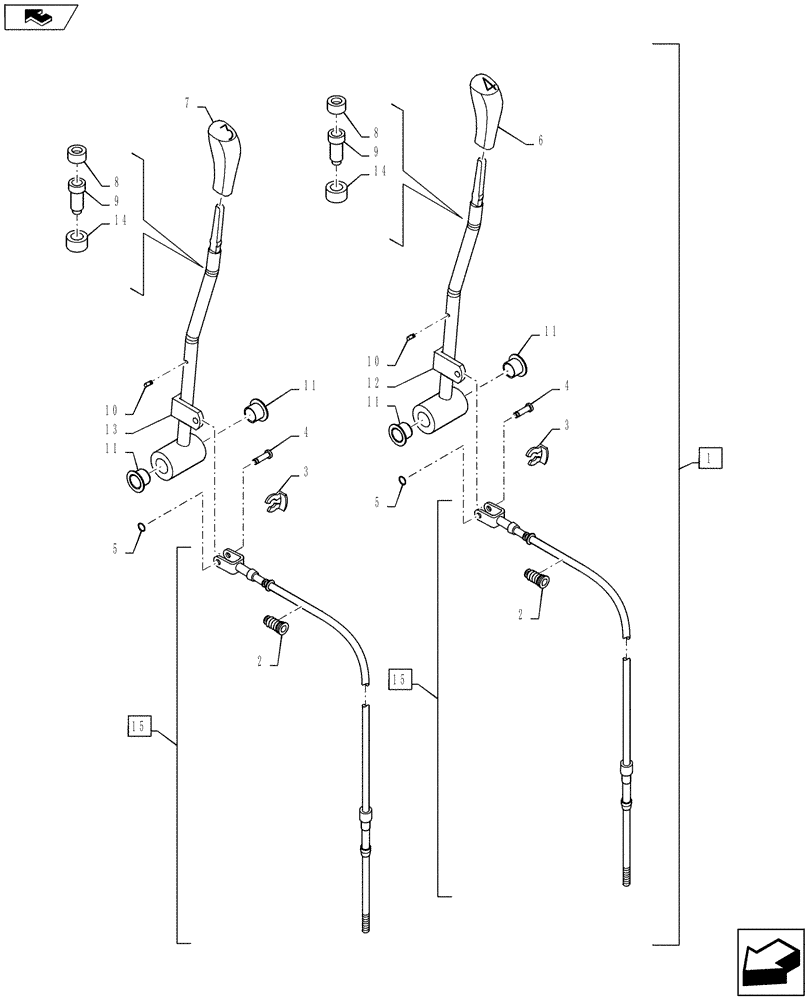

Схема запчастей Case IH PUMA 130 - (88.035.02[02]) - DIA KIT, 2 ADDITIONAL MECHANICAL CONFIGURATION REMOTES (2 TO 4) - LEVERS (88) - ACCESSORIES
2
14
15
10
11
15
6
11
9
4
8
14
5
11
11
home
13
7
12
4
3
9
3
2
5
1
8
10

Артикул

Название

Примечание

Количество

1

710024034

DIA KIT, TRACTOR

Two Additional Remotes, Mech Confuration for GARU, Incl 2 - 15. Kit Incl parts on figures 88.035.02 01 - 03

1шт.

2

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

2шт.

3

82007837

LOCKING RING

2шт.

4

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

2шт.

5

86632599

CIRCLIP,M5

2шт.

6

82037913

KNOB

1шт.

7

82037912

KNOB

1шт.

8

84209516

LOCKING DEVICE

2шт.

9

84209520

LOCKING DEVICE

2шт.

10

87492515

SPRING LOCK

2шт.

11

82035633

BUSHING

4шт.

12

84174792

LEVER

4th Remote

1шт.

13

84174791

LEVER

3rd Remote

1шт.

14

84186770

INSERT

2шт.

15

87525209

CABLE,1828mm L

Incl 2

2шт.

Выбрано товаров: 15
