Запчасти Case IH PUMA 130 (88.033.03[03]) - DIA KIT, PNEUMATIC TRAILER BRAKE ITALY - PIPES (88) - ACCESSORIES

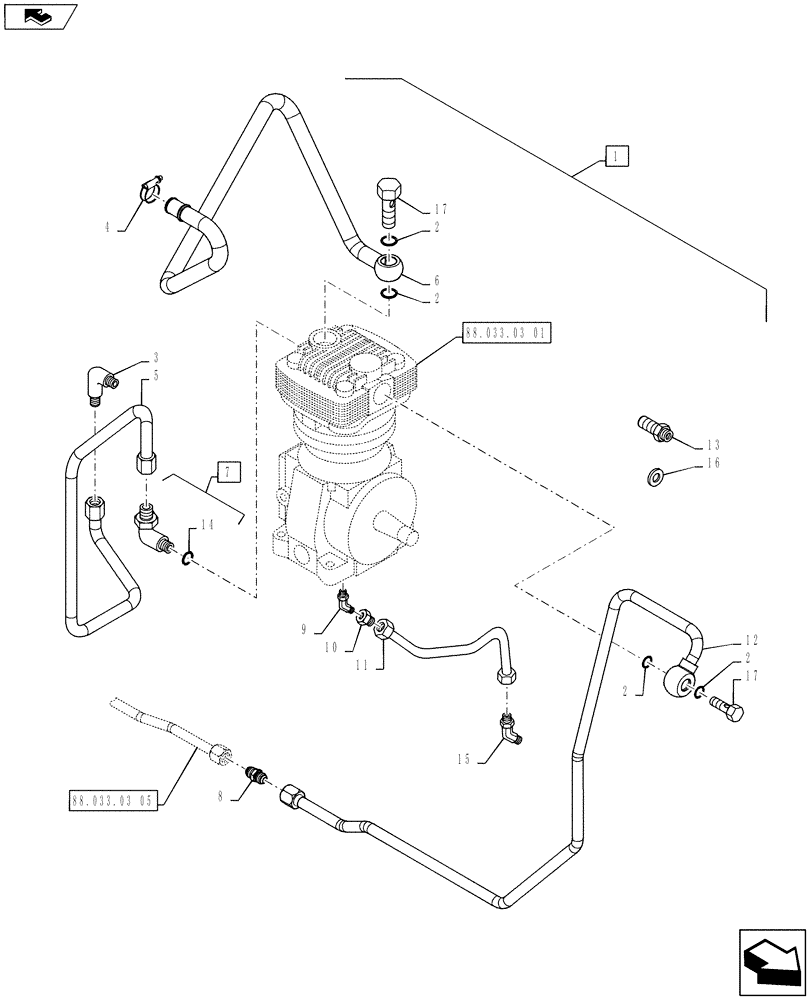

Схема запчастей Case IH PUMA 130 - (88.033.03[03]) - DIA KIT, PNEUMATIC TRAILER BRAKE ITALY - PIPES (88) - ACCESSORIES
10
2
11
7
17
home
8
1
5
9
6
13
3
2
4
2
12
88.033.03 01
15
88.033.03 05
2
14
16
17

Артикул

Название

Примечание

Количество

1

718385184

DIA KIT, TRACTOR, TO

Pneumatic Italian Trailer Brake, Incl 2 - 17. Kit Incl Figures 88.033.03 01 - 12

1шт.

2

82031552

COPPER WASHER,26.1mm ID x 32mm OD x 1.5mm Thk

4шт.

3

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

4

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

5

87802677

TUBE,6.0mm OD x 137.00mm, 50.00mm L

Lube Oil Supply

1шт.

6

84404553

BRAKE LINE

Compressor

1шт.

7

82002502

90 ELBOW,7/16"-20 x M10 x 1

Incl 14

1шт.

8

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

1шт.

9

87802837

ELBOW,45 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

10

87656032

ADAPTER

1шт.

11

87656030

RIGID TUBE,16.00mm OD x 139.10mm L

Compressor Oil Drain

1шт.

12

87702807

RIGID TUBE,16.00mm OD x 998.50mm, 100.00mm L

Air Brakes

1шт.

13

87802702

HYD CONNECTOR

1шт.

14

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

15

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

16

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

1шт.

17

82031550

BANJO BOLT,M26 x 1.50

, Serial Range: -C7154

2шт.

17

84385706

BANJO BOLT,M26 x 1.5 x 50mm

, Start Serial: D7154

2шт.

Выбрано товаров: 18
