Запчасти Case IH PUMA 130 (88.033.02[06]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - PIPES (88) - ACCESSORIES

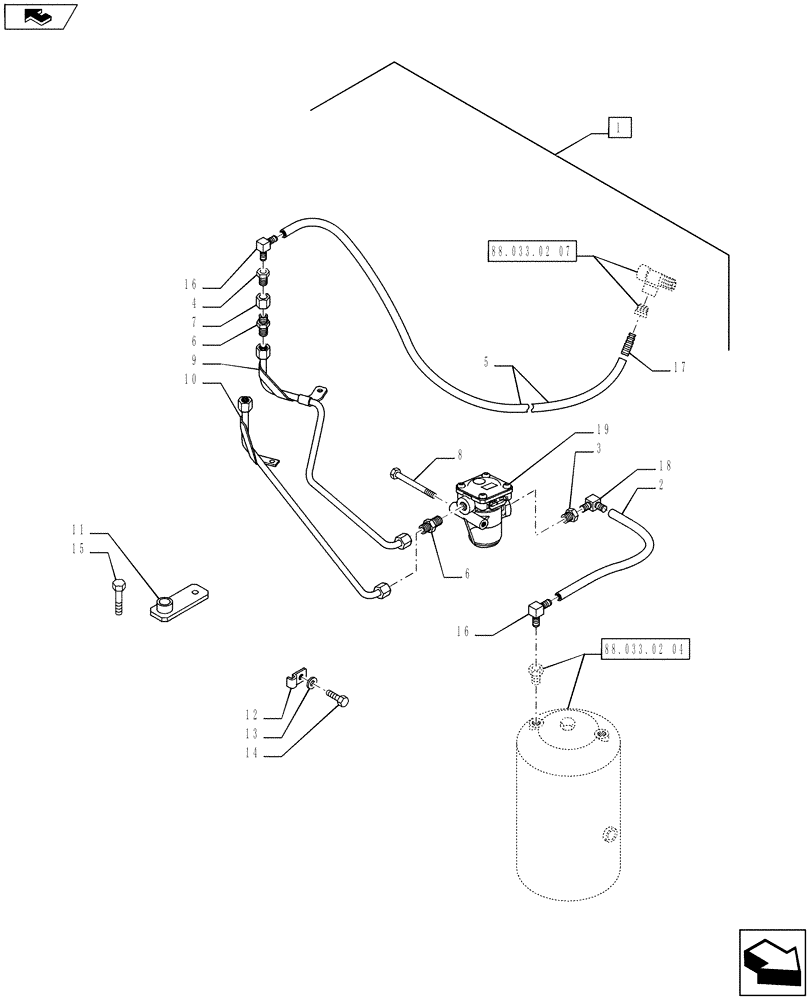

Схема запчастей Case IH PUMA 130 - (88.033.02[06]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - PIPES (88) - ACCESSORIES
6
17
1
2
16
13
7
5
11
10
19
14
12
88.033.02 04
8
15
16
home
18
88.033.02 07
3
9
6
4

Артикул

Название

Примечание

Количество

1

719385184

DIA KIT, TRACTOR

Pneumatic Trailer Brake, Universal, Incl 2 - 19, Kit also Incl Figures 88.033.02 01 - 12

1шт.

2

84181238

TUBE,12.00mm OD x 260.00mm

Incl 16, 18, Reservoir To Dryer

1шт.

3

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

4

82036156

FITTING,M22 x 1.5 x NG12

1шт.

5

84174057

TUBE,12.00mm OD x 750.00mm

Incl 16, 17

1шт.

6

84181658

HYD CONNECTOR

1шт.

7

84174059

HYD CONNECTOR

1шт.

8

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

1шт.

9

84174051

TUBE

, Serial Range: -C7159

1шт.

9

84486590

TUBE

, Start Serial: D7159

1шт.

10

84338178

HYD TUBE

, Serial Range: -C7159

1шт.

10

84486585

HYD TUBE

, Start Serial: D7159

1шт.

11

84317379

BRACKET

2шт.

12

5178447

BRACKET

2шт.

13

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

82038479

90 ELBOW,NG12 x 12mm D

2шт.

17

87588082

HYD CONNECTOR,M12 x 1.5

1шт.

18

87588080

90 ELBOW,NG8 x 12mm D

1шт.

19

84372823

VALVE

Pressure Limiting

1шт.

Выбрано товаров: 21
