Запчасти Case IH PUMA 130 (88.033.02[04]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - REGENERATION AIR DRYER, TANKS AND PIPES (88) - ACCESSORIES

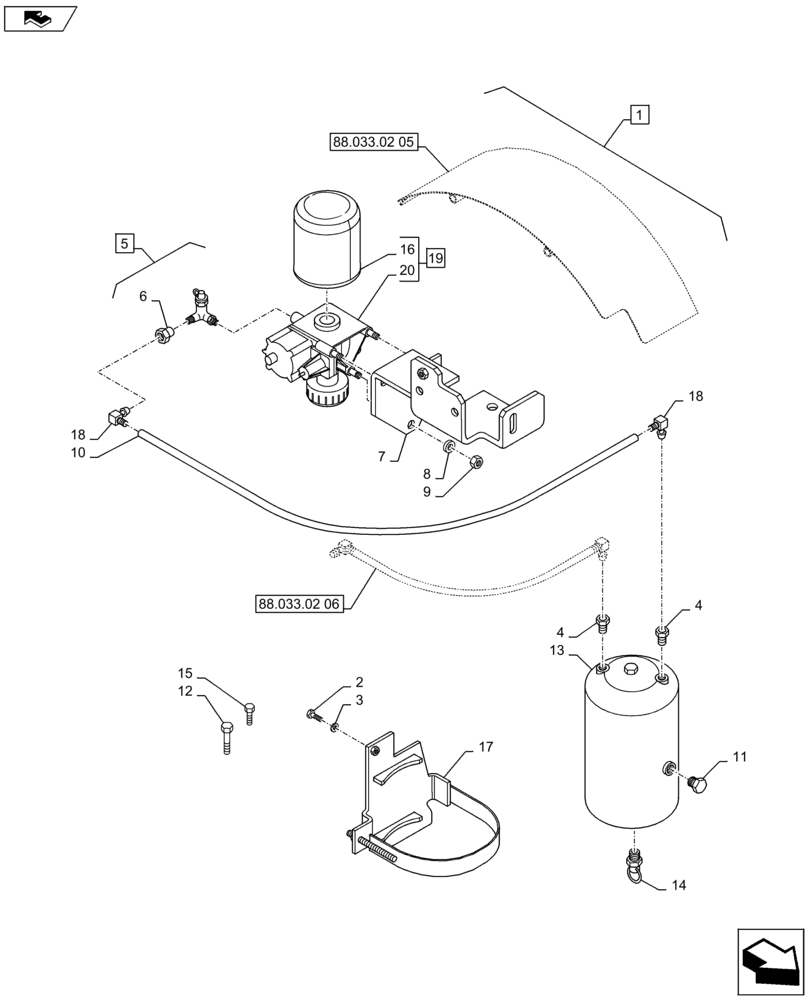

Схема запчастей Case IH PUMA 130 - (88.033.02[04]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - REGENERATION AIR DRYER, TANKS AND PIPES (88) - ACCESSORIES
home
6
16
17
1
5
10
20
8
15
7
3
14
4
13
88.033.02 06
9
19
4
12
18
88.033.02 05
11
2
18

Артикул

Название

Примечание

Количество

1

719385184

DIA KIT, TRACTOR

Pneumatic Trailer Brake, Universal, Incl 2 - 20, Kit also Incl Figures 88.033.02 01 - 12

1шт.

2

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

3

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

4

82036156

FITTING,M22 x 1.5 x NG12

2шт.

5

87345151

HYD CONNECTOR,M22 x 1.5

Incl 6

1шт.

6

82034157

ADAPTER

1шт.

7

84170916

BRACKET

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

9

11702911

NUT,M12, Cl 8, ZND

3шт.

10

84181253

FLEXIBLE HOSE,14.00mm ID x 616.00mm

Incl 18, Dryer to Reservoir

1шт.

11

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

12

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

84170918

AIR RESERVOIR

1шт.

14

82004266

DRAIN

Air Reservoir Drain

1шт.

15

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

16

87638772

CARTRIDGE,165mm L

Incl in 19, 165mm

1шт.

17

84286331

SUPPORT

1шт.

18

82038453

HYD CONNECTOR,232 NG12 x 16mm D

2шт.

19

84170919

RECEIVER-DRYER

ASSY, Incl 16, 20

1шт.

20

NSS

NOT SOLD SEPARAT

Air Dryer, Incl in 19

1шт.

Выбрано товаров: 20
