Запчасти Case IH PUMA 130 (88.033.02[02]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - PULLEYS AND BELT (88) - ACCESSORIES

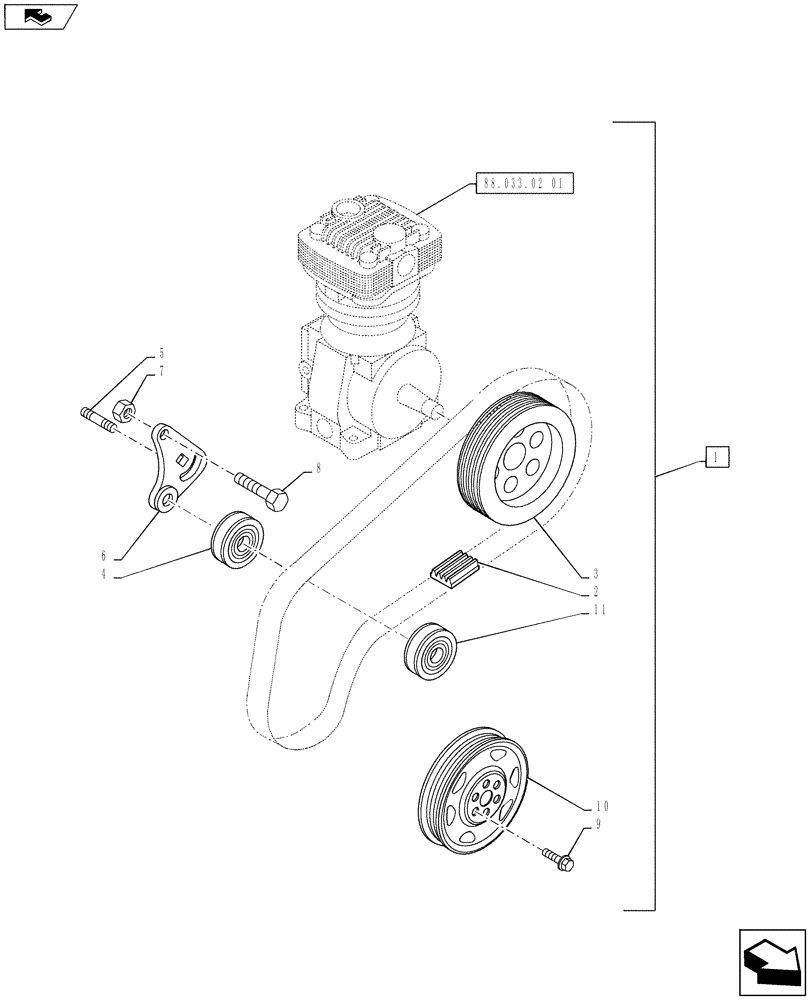

Схема запчастей Case IH PUMA 130 - (88.033.02[02]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - PULLEYS AND BELT (88) - ACCESSORIES
4
1
5
7
6
3
8
88.033.02 01
11
home
9
2
10

Артикул

Название

Примечание

Количество

1

719385184

DIA KIT, TRACTOR

Pneumatic Trailer Brake, Universal, Incl 2 - 11, Kit also Incl Figures 88.033.02 01 - 12

1шт.

2

87710660

V-BELT,14.04mm W x 1083.00mm L, 4 Ribs

1шт.

3

82036658

PULLEY

1шт.

4

87803017

IDLER,65mm OD

1шт.

5

4899402

STUD,M10 x 1.5 x 45.00mm

1шт.

6

87802642

BRACKET

1шт.

7

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

1шт.

8

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

1шт.

9

4892867

CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9

6шт.

10

2853546

PULLEY

1шт.

11

87803016

IDLER,57mm OD

1шт.

Выбрано товаров: 11
