Запчасти Case IH PUMA 130 (88.033.02[01]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - BRACKET FOR AIR COMPRESSOR (88) - ACCESSORIES

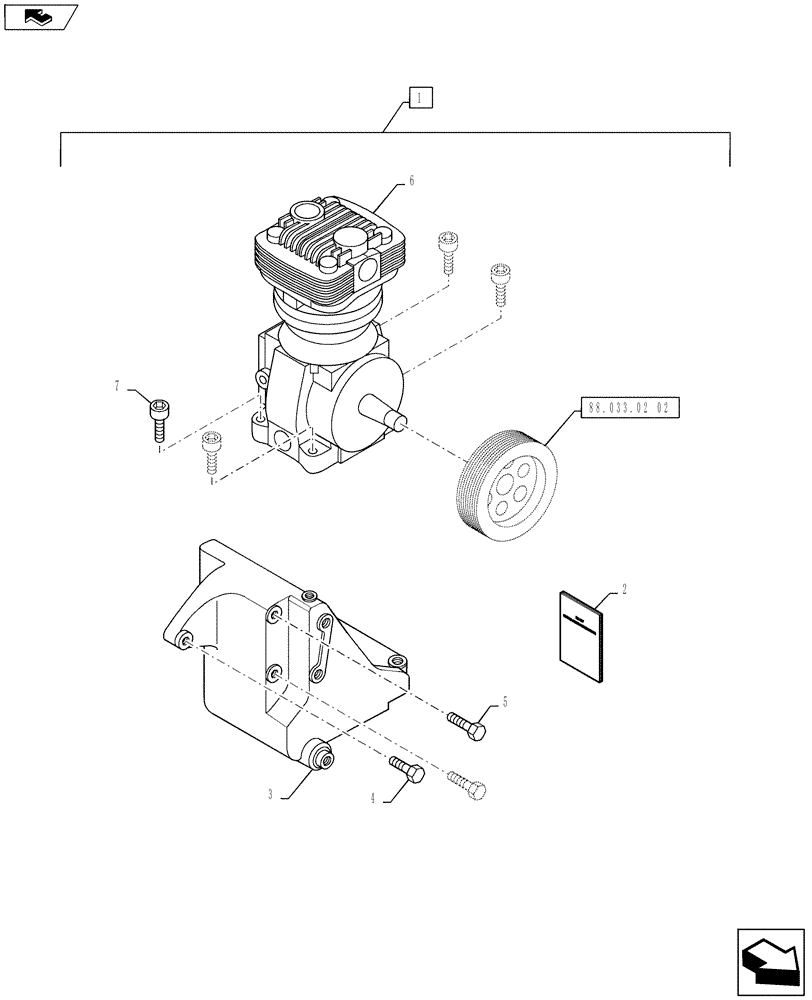

Схема запчастей Case IH PUMA 130 - (88.033.02[01]) - DIA KIT, PNEUMATIC TRAILER BRAKE (UNIVERSAL) - BRACKET FOR AIR COMPRESSOR (88) - ACCESSORIES
2
3
4
home
1
88.033.02 02
6
7
5

Артикул

Название

Примечание

Количество

1

719385184

DIA KIT, TRACTOR

Pneumatic Trailer Brake, Universal, Incl 2 - 7, also Incl Figures 88.033.02 01 - 12

1шт.

2

84177004

INSTRUCTION

1шт.

3

87802974

SUPPORT

1шт.

4

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

1шт.

5

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

6

84184563

AIR COMPRESSOR

1шт.

7

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 7
