Запчасти Case IH PUMA 130 (88.031.01[01]) - DIA KIT, FRONT POWER TAKE OFF - PTO, CLUTCH AND CYLINDER (88) - ACCESSORIES

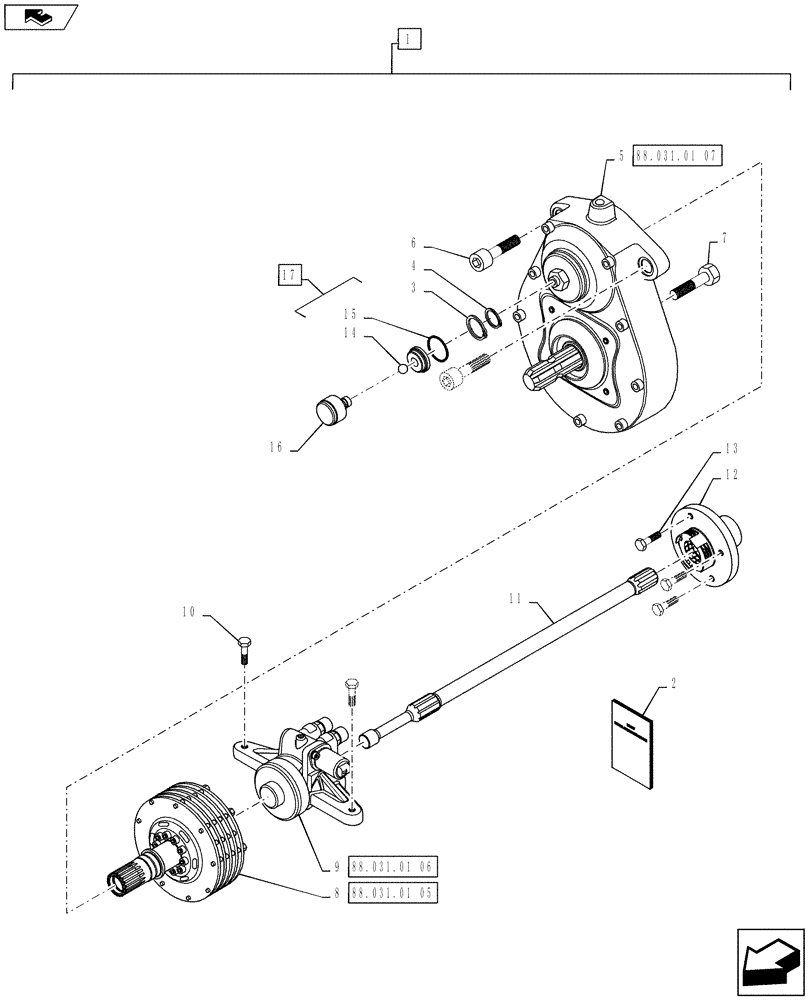

Схема запчастей Case IH PUMA 130 - (88.031.01[01]) - DIA KIT, FRONT POWER TAKE OFF - PTO, CLUTCH AND CYLINDER (88) - ACCESSORIES
17
88.031.01
4
14
88.031.01
2
1
home
15
12
88.031.01 05
10
7
11
5
6
8
9
88.031.01
16
13
88.031.01 06
3
88.031.01 07

Артикул

Название

Примечание

Количество

1

719098064

DIA KIT, TRACTOR

Incl 2 - 17, Front PTO, 6 Spline, 1000 RPM, Kit Incl Figures 88.033.01 01 - 07

1шт.

2

84229578

INSTRUCTION

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

84265034

GEARBOX

1шт.

6

14429534

HEX SOC SCREW,M20 x 60mm, Cl 10.9

2шт.

7

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

1шт.

8

87731123

PTO CLUTCH

1шт.

9

47057804

CYLINDER

1шт.

10

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

11

87731116

DRIVE SHAFT,694mm L

1шт.

12

47127689

HUB

1шт.

13

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

14

20419380

BALL,12.7mm Dia

1шт.

15

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

16

47126759

BREATHER,M12 x 1.25

1шт.

17

47128748

PLUG

Incl 14, 15

1шт.

Выбрано товаров: 17
