Запчасти Case IH PUMA 130 (88.021.02[01]) - DIA KIT, CREEPER SPEED FOR 18X6 FULL POWER SHIFT - REDUCTION UNIT CONTROLS (88) - ACCESSORIES

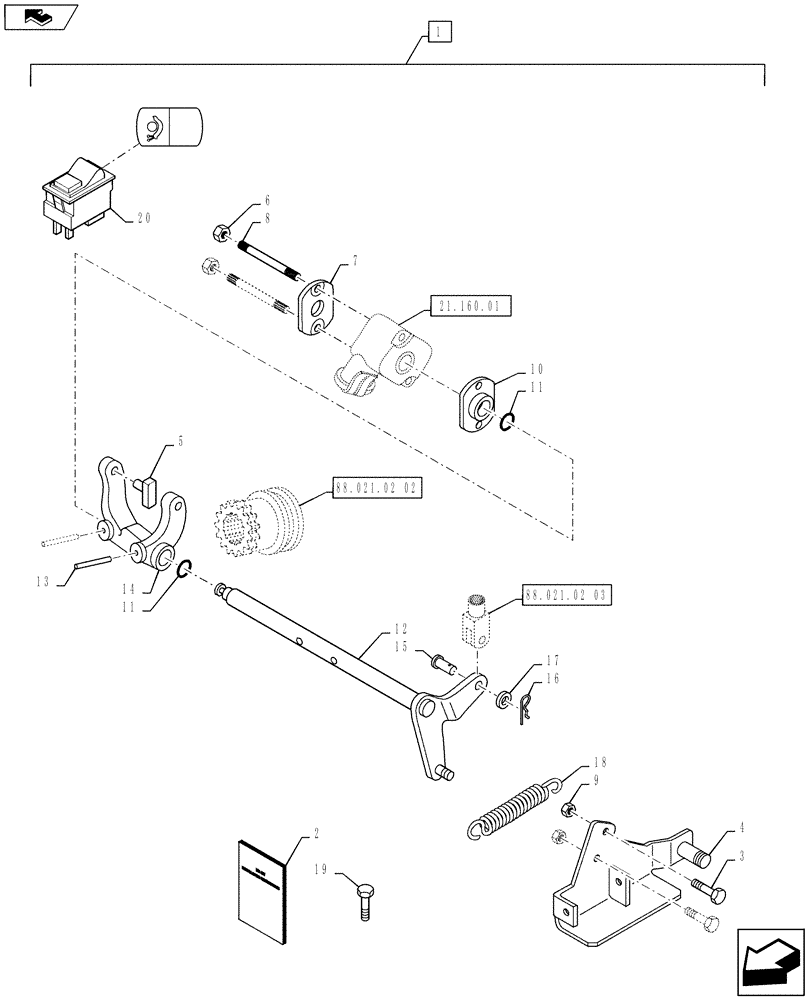

Схема запчастей Case IH PUMA 130 - (88.021.02[01]) - DIA KIT, CREEPER SPEED FOR 18X6 FULL POWER SHIFT - REDUCTION UNIT CONTROLS (88) - ACCESSORIES
13
20
3
8
2
12
19
5
6
17
21.160.01
9
1
88.021.02 03
16
88.021.02 02
4
10
11
18
14
15
home
7
11

Артикул

Название

Примечание

Количество

1

710146084

DIA KIT, TRACTOR

Incl 2 - 20, Creeper for 18 x 6 Full Power Shift, also Incl Parts on Figures 88.021.02 02 and 03

1шт.

2

84252862

INSTRUCTION

1шт.

3

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

87385624

BRACKET

1шт.

5

5152826

SLIDING PAD

2шт.

6

12577811

NUT,M5

2шт.

7

5178336

PLATE

1шт.

8

82014252

STUD,M5

2шт.

9

16100814

NUT,M8, Cl 8, DAC

2шт.

10

5188275

PLATE

1шт.

11

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

12

87302436

CONTROL LEVER

1шт.

13

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

14

5148321

LEVER

1шт.

15

10050811

PIN,8mm OD x 22mm L

1шт.

16

10734206

COTTER PIN,2mm OD x 12mm L

1шт.

17

13550301

WASHER

1шт.

18

84189604

TENSION SPRING,30mm OD x 120mm L

1шт.

19

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

2шт.

20

82022761

SWITCH ASSY

1шт.

Выбрано товаров: 20
