Запчасти Case IH PUMA 130 (88.010.02) - DIA KIT, (220V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS (88) - ACCESSORIES

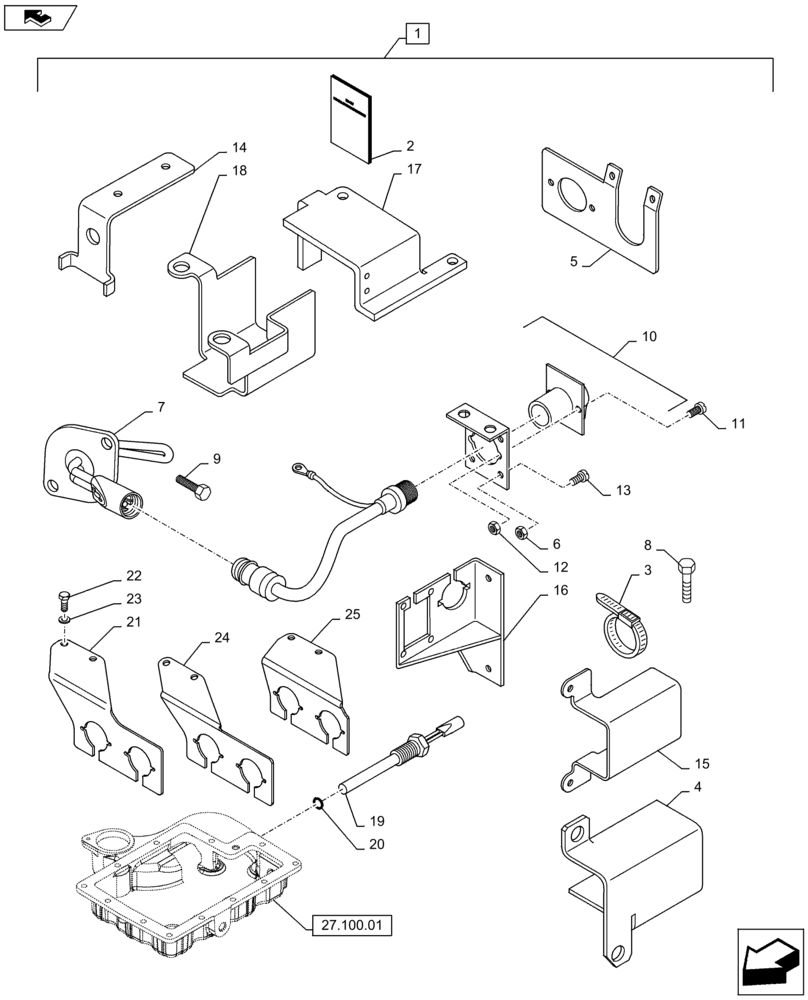

Схема запчастей Case IH PUMA 130 - (88.010.02) - DIA KIT, (220V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS (88) - ACCESSORIES
3
home
8
2
5
27.100.01
1
22
18
6
23
17
12
10
9
24
16
4
11
25
21
13
15
19
7
14
20

Артикул

Название

Примечание

Количество

1

719106064

DIA KIT, TRACTOR

Incl 2 - 25, Eng Coolant Heater and Trans Oil Heater - 240V

1шт.

2

84202625

INSTRUCTION

1шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

4

84278885

GUARD

1шт.

5

87315478

BRACKET

1шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

7

87756078

HEATER,240V

230V, Engine Block

1шт.

8

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87756875

ELECTRIC CABLE

240V, Eng Block Heater, Serial Range: -C7114

2шт.

10

84397509

ELECTRIC CABLE

, Start Serial: D7114

2шт.

11

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

, Serial Range: -C7114

4шт.

12

10794011

NUT,M4, Cl 8

, Serial Range: -C7114

4шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

14

87633005

BRACKET

1шт.

15

87616064

GUARD

Puma 115, 125, 140, 155

1шт.

16

84167089

SUPPORT

1шт.

17

87571524

GUARD

1шт.

18

84162403

GUARD

1шт.

19

82030789

HEATER,240V

Transmission Oil, 230V, Incl 2

1шт.

20

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

21

84305836

SUPPORT

, Serial Range: D7114-C7339

1шт.

22

16043211

BOLT,Hex, M8 x 1.25 x 16mm, Cl 5.8, Full Thd

, Start Serial: D7114

2шт.

23

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Start Serial: D7114

2шт.

24

47370843

BRACKET

, Start Serial: D7339

1шт.

25

47390802

SUPPORT

1шт.

Выбрано товаров: 26
