Запчасти Case IH PUMA 130 (88.010.01) - DIA KIT, (110V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS (88) - ACCESSORIES

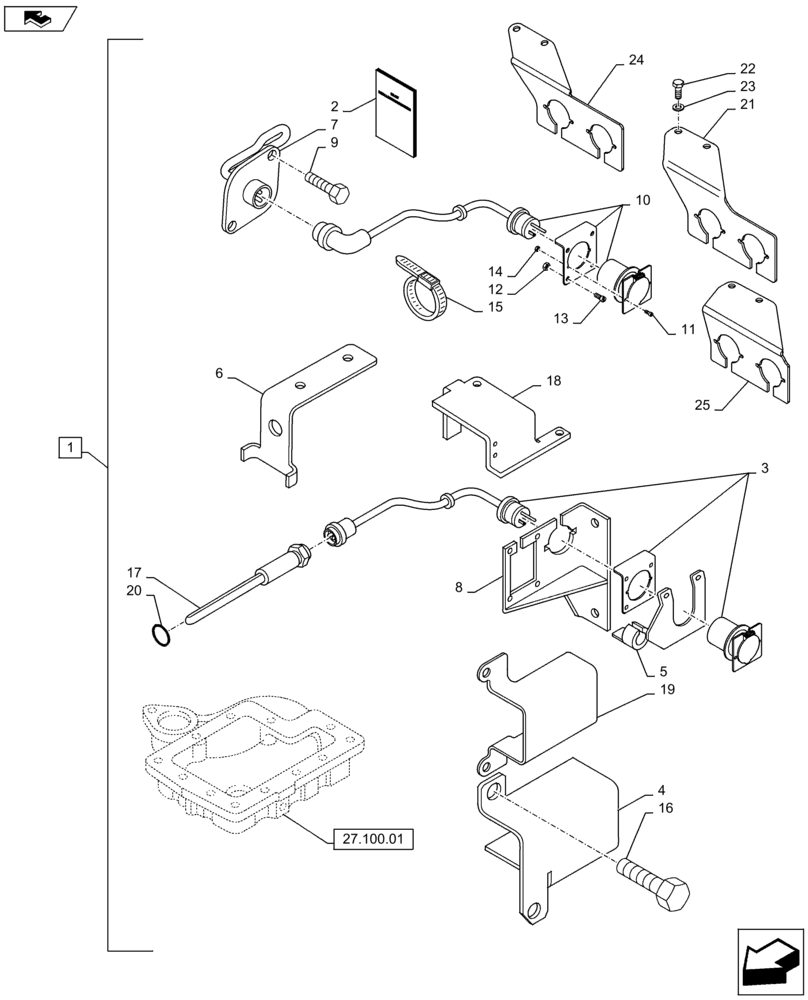

Схема запчастей Case IH PUMA 130 - (88.010.01) - DIA KIT, (110V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS (88) - ACCESSORIES
27.100.01
6
11
7
21
22
3
4
17
24
14
19
12
8
23
16
home
9
10
18
15
2
1
5
13
20
25

Артикул

Название

Примечание

Количество

1

710206094

DIA KIT, TRACTOR

Incl 2 - 25

1шт.

2

84202625

INSTRUCTION

1шт.

3

84397506

ELECTRIC CABLE,78mm L

Transmission Oil Heater, 110V

1шт.

4

84278885

GUARD

Puma 130, 145, 160

1шт.

5

87651112

BRACKET

1шт.

6

87633005

BRACKET

1шт.

7

4891287

HEATER

Engine Block, 110V

1шт.

8

84167089

SUPPORT

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87756876

ELECTRIC CABLE

Engine Block, 110V, Serial Range: -C7114

1шт.

10

84397507

ELECTRIC CABLE

, Start Serial: D7114

1шт.

11

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

, Serial Range: -C7114

4шт.

12

10794011

NUT,M4, Cl 8

, Serial Range: -C7114

4шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

15

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

4шт.

16

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

17

84130678

HEATER,110V

Transmission Oil, 110V

1шт.

18

87571524

GUARD

1шт.

19

87616064

GUARD

Puma 115, 125, 140, 155

1шт.

20

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

21

84305836

SUPPORT

, Serial Range: D7114-C7339

1шт.

22

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

, Start Serial: D7114

2шт.

23

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Start Serial: D7114

2шт.

24

47370843

BRACKET

, Start Serial: D7339

1шт.

25

47390802

SUPPORT

1шт.

Выбрано товаров: 26
