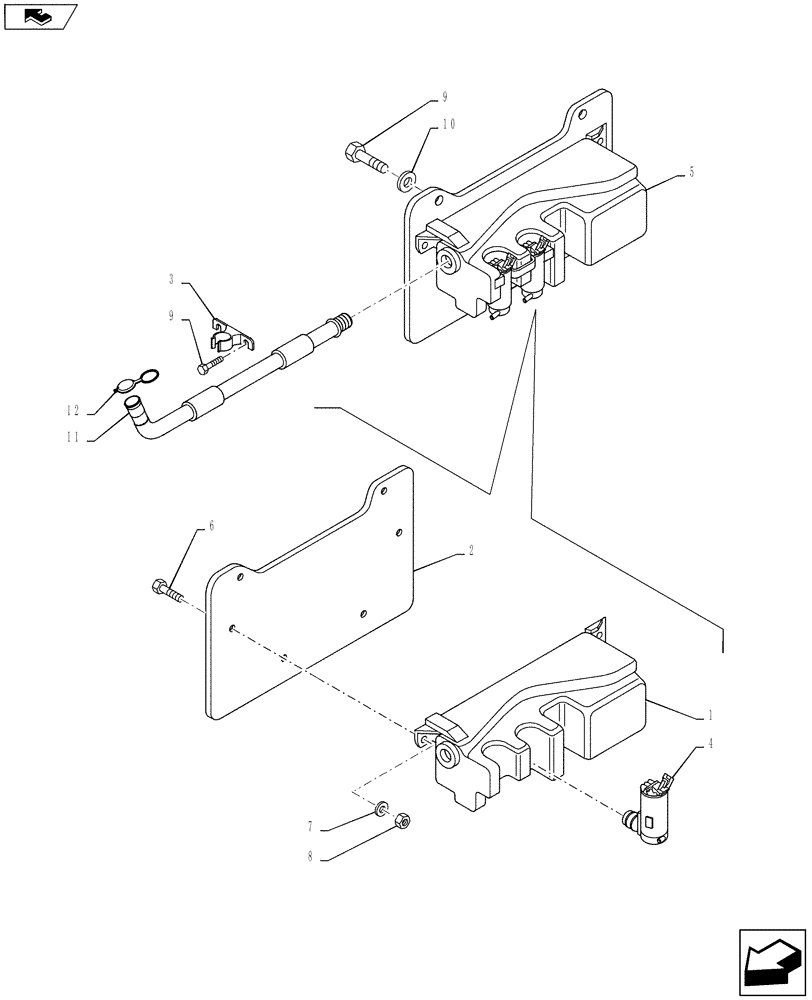

Запчасти Case IH PUMA 130 (55.518.01) - WINDSHIELD WASH RESERVOIR (55) - ELECTRICAL SYSTEMS

1

82030995

RESERVOIR, WINDSHIEL

1шт.

2

87638111

PLATE

1шт.

3

87475579

CLAMP BRACKET

1шт.

4

82030996

PUMP

2шт.

5

87638112

RESERVOIR, WINDSHIEL

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

87470604

TUBE,34 mm DIA x 575.51, 84.7 mm L

1шт.

12

87527729

FILLER CAP

1шт.
