(41.200.06) - POWER STEERING DELIVERY AND RETURN PIPES

Запчасти Case IH PUMA 130 (41.200.06) - POWER STEERING DELIVERY AND RETURN PIPES (41) - STEERING

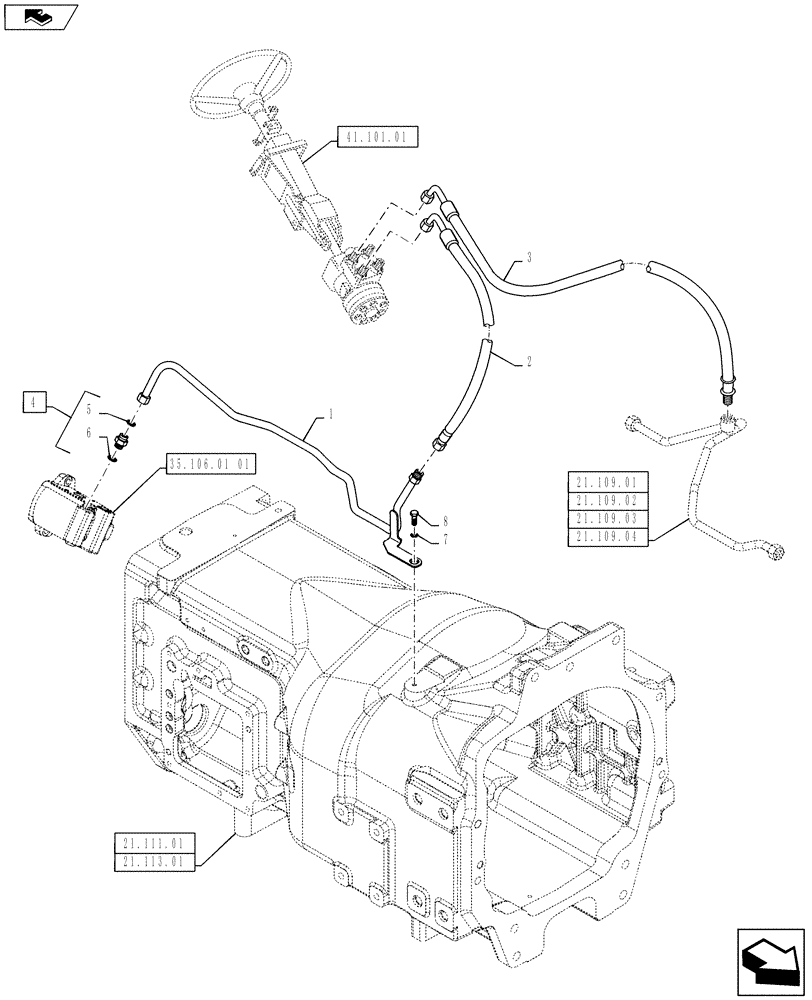

Схема запчастей Case IH PUMA 130 - (41.200.06) - POWER STEERING DELIVERY AND RETURN PIPES (41) - STEERING
21.109.04
5
3
21.111.01
21.109.03
41.101.01
8
6
21.113.01
35.106.01 01
21.109.02
7
2
21.109.01
1
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84146404

HYD TUBE,16 mm OD

1шт.

2

87367548

HOSE ASSY.,540.00mm

Feed, Serial Range: -C9029

1шт.

2

84402486

HOSE,12.7mm ID x 540mm L, SAE 100R16

Feed, Start Serial: D9029

1шт.

3

87367555

HOSE ASSY.,12.7mm ID x 570mm L, SAE 100R2

Return, Serial Range: -C9029

1шт.

3

84497517

HOSE

Return, Start Serial: D9029

1шт.

4

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

Supply Steering

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

From Steering

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

8

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.
