(35.204.25) - VALVE SECTION - ELECTRONIC DRAFT CONTROL

Запчасти Case IH PUMA 130 (35.204.25) - VALVE SECTION - ELECTRONIC DRAFT CONTROL (35) - HYDRAULIC SYSTEMS

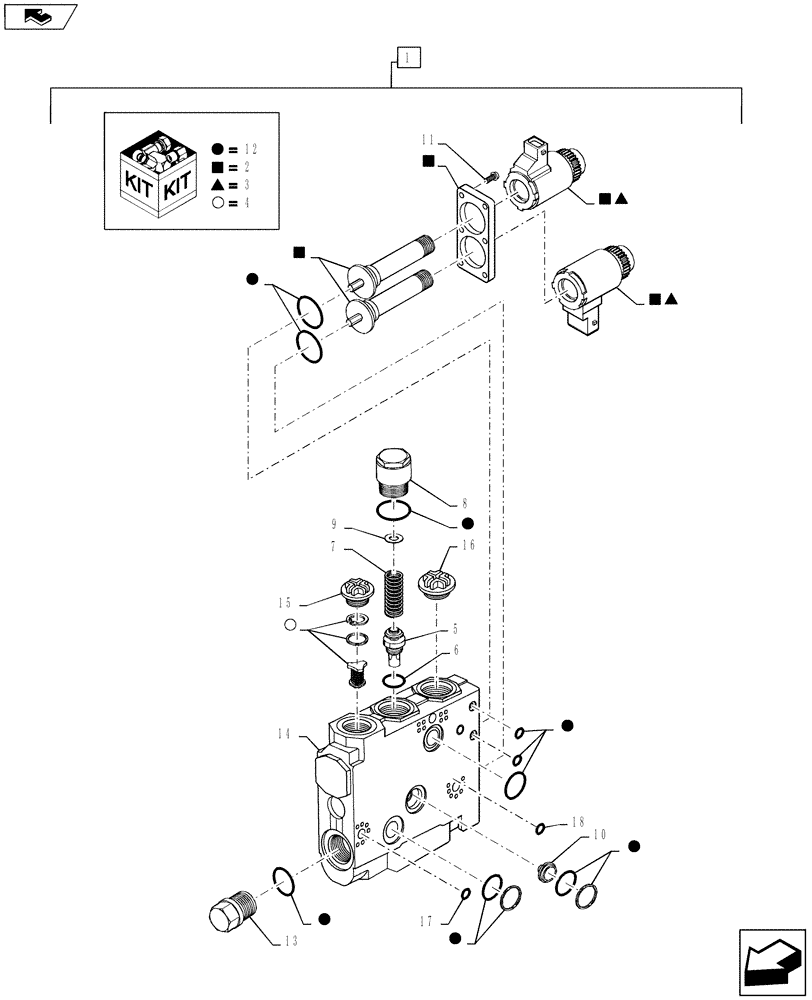

Схема запчастей Case IH PUMA 130 - (35.204.25) - VALVE SECTION - ELECTRONIC DRAFT CONTROL (35) - HYDRAULIC SYSTEMS
3
12
home
12
18
12
10
14
4
4
16
15
11
3
12
12
12
12
4
17
2
1
2
3
12
8
7
5
2
6
3
13
9
12
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84175671

VALVE SECTION

Incl 2 - 18

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 all (1/11-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

2

5190768

COIL ASSY.

2шт.

3

84270220

SOLENOID,3.35A

1шт.

4

84232107

REPAIR KIT

1шт.

5

47129415

INSERT

1шт.

6

87531495

O-RING,12.00mm ID x 1.75mm

1шт.

7

47129411

SPRING

1шт.

8

47129410

PLUG,Hex, 29.2mm OD

1шт.

9

47129416

SHIM,0.80mm T

1шт.

9

47129406

SHIM,0.30mm T

1шт.

9

47129407

SHIM,0.40mm T

1шт.

10

84127100

SHUT-OFF VALVE

1шт.

11

47129409

SET SCREW,Oval Head

6шт.

12

84312718

SEAL KIT

1шт.

13

87531487

PLUG

1шт.

14

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

O-ring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

O-ring, Incl in 1

1шт.
