Запчасти Case IH PUMA 130 (35.204.20) - VALVE SECTION - MECHANICAL - NON-CONFIGURABLE DETENT (35) - HYDRAULIC SYSTEMS

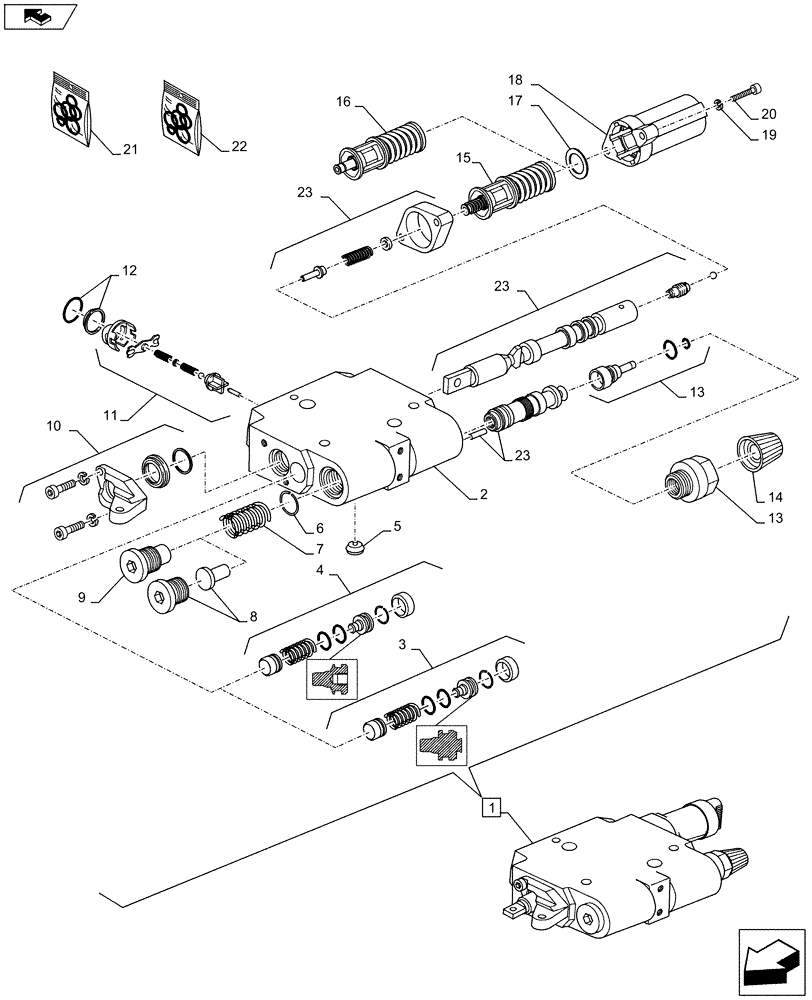

Схема запчастей Case IH PUMA 130 - (35.204.20) - VALVE SECTION - MECHANICAL - NON-CONFIGURABLE DETENT (35) - HYDRAULIC SYSTEMS
15
19
3
21
16
17
4
14
5
12
home
2
23
13
9
23
7
10
1
11
22
6
20
23
18
8
13

Артикул

Название

Примечание

Количество

1

87546169

CONTROL VALVE

ASSY, Incl 2-23

1шт.

87546169R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 All TRACTOR - CVT (1/11-)

1шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE HOUSING, Incl in 1

1шт.

3

87376020

SERVICE KIT

1шт.

4

87666211

SERVICE KIT

1шт.

5

47127006

VALVE

1шт.

6

47129463

RETAINER

1шт.

7

84124585

SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW PLUG and GUIDE PIN, Incl in 1

1шт.

9

47615569

PLUG,M22 x 1.5 x 44.1mm L

1шт.

10

47615625

SERVICE KIT

1шт.

11

5191720

REPAIR KIT

1шт.

12

84125422

SEAL KIT

1шт.

13

47130767

KIT

1шт.

14

87319988

KNOB

1шт.

15

87384898

SERVICE KIT

STD Equipment, Years: -09-DEC-12

1шт.

15

5190977

KIT

Optional, Years: -09-DEC-12

1шт.

3 Position, W/O Kick-Out

1шт.

15

5190975

KIT

Optional, Years: -09-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent only in Float

1шт.

15

5190976

KIT

Optional, Years: -09-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent in all Positions

1шт.

16

47618828

SERVICE KIT

STD Equipment, Start Year: 10-DEC-12

1шт.

16

47618819

KIT

Optional, Start Year: 10-DEC-12

1шт.

3 Position, W/O Kick-Out

1шт.

16

47618825

KIT

Optional, Start Year: 10-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent only in Float

1шт.

16

47723996

KIT

Optional, Start Year: 10-DEC-12

1шт.

4 Position, W/O Kick-Out & Detent in all Positions

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM, Incl in 1

1шт.

18

5191784

CAP

1шт.

19

5191783

SPRING WASHER

2шт.

20

87666210

HEX SOC SCREW,M6 x 30mm

2шт.

21

87661337

KIT

1шт.

22

47127019

SEAL

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE SPOOL COMPONENTS, Incl in 1

1шт.

Выбрано товаров: 37
