(35.204.11[02]) - VAR - 743733, 332862, 332855 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND

Запчасти Case IH PUMA 130 (35.204.11[02]) - VAR - 743733, 332862, 332855 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

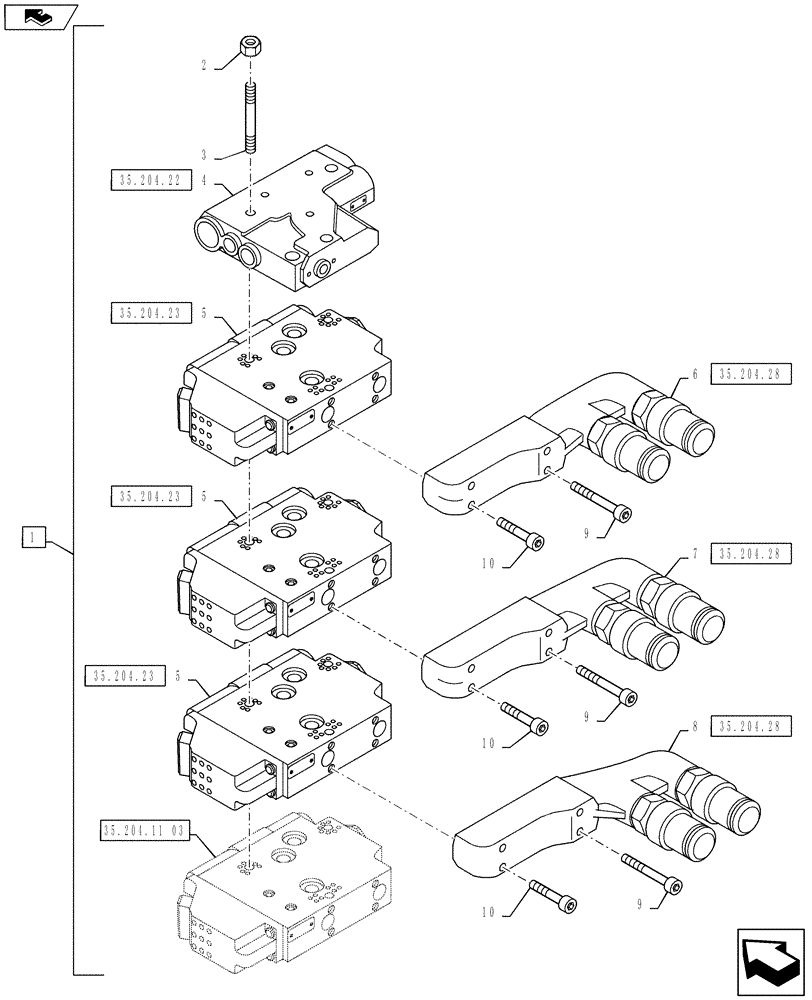

Схема запчастей Case IH PUMA 130 - (35.204.11[02]) - VAR - 743733, 332862, 332855 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS
3
10
9
35.204.23
35.204.28
8
5
35.204.11 03
10
5
9
35.204.28
4
1
35.204.23
35.204.23
5
2
7
35.204.28
home
10
35.204.22
6
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84266084

CONTROL VALVE

Incl 2 - 10 and Parts on Fig 35.204.11 03

1шт.

2

5195169

NUT,M8

3шт.

3

84151304

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

84230181

HYD VALVE SECTION

3шт.

84230181R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 all (1/11-)

3шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

87381965

QUICK MALE COUPLING

1шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

6шт.
