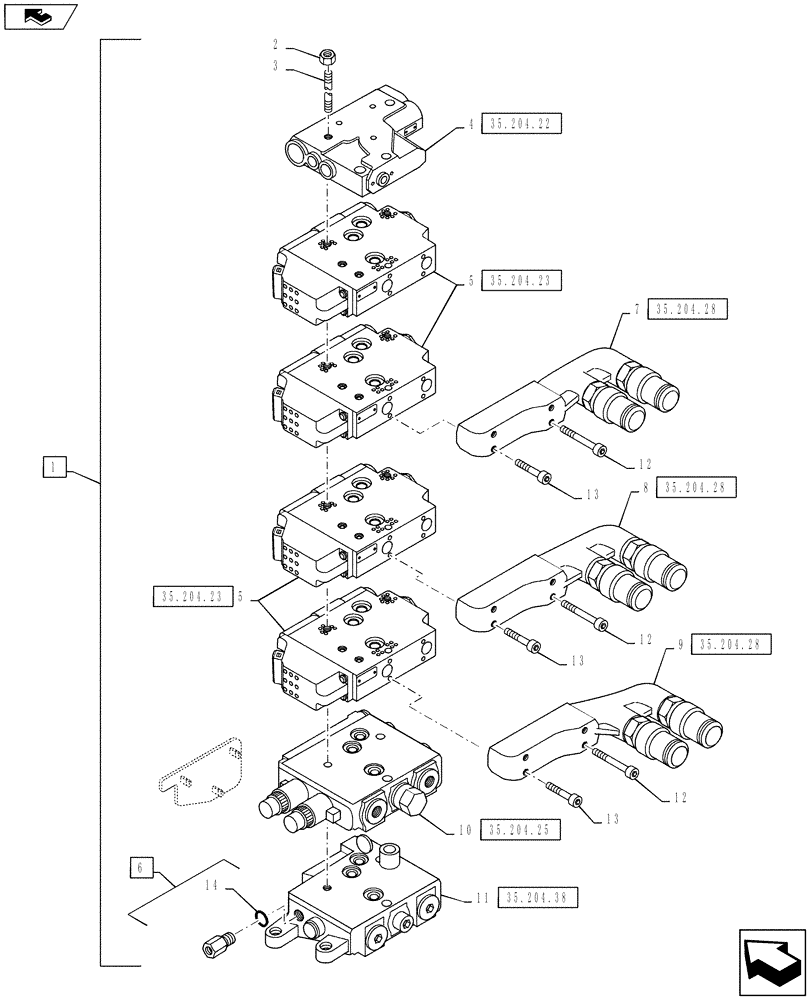

Запчасти Case IH PUMA 130 (35.204.10[02]) - VAR - 743733, 330862, 338851 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE (35) - HYDRAULIC SYSTEMS

1

84266085

CONTROL VALVE

Incl 2 - 14

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

84230181

HYD VALVE SECTION

4шт.

84230181R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 all (1/11-)

4шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

Incl 14

1шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

84175671

VALVE SECTION

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 all (1/11-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 ALL (1/11-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
