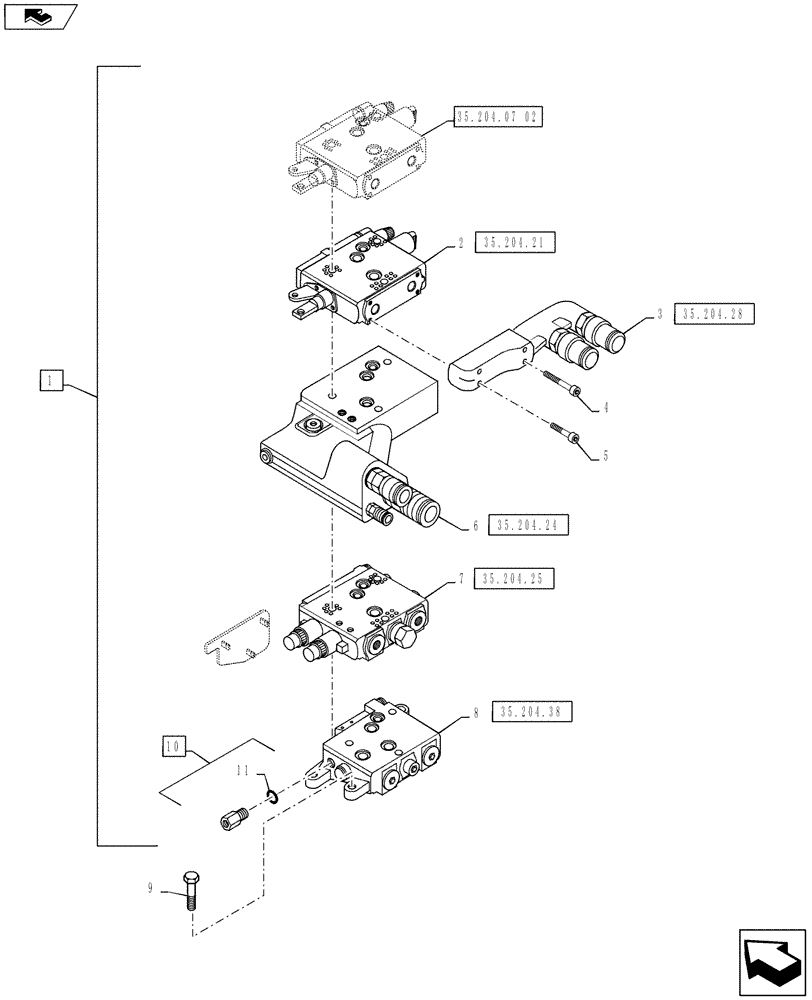

Запчасти Case IH PUMA 130 (35.204.07[03]) - VAR - 743685, 336845 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

84266082

CONTROL VALVE

Incl 2 - 8, 10, 11 and Figure 35.204.07 02

1шт.

2

87328572

HYD VALVE SECTION

1шт.

3

87381958

QUICK MALE COUPLING

1шт.

4

47129475

HEX SOC SCREW,M6 x 50mm

2шт.

5

47129474

HEX SOC SCREW,M6 x 35mm

2шт.

6

84146807

HYD VALVE SECTION

1шт.

7

84175671

VALVE SECTION

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 all (1/11-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

8

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

PUMA 130, PUMA 145 , PUMA 160 ALL (1/11-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

9

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

10

5191704

CHECK VALVE

Incl 11

1шт.

11

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
