(35.204.04[02]) - VAR - 743741, 335844 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 3 VALVE W/ POWER BEYOND

Запчасти Case IH PUMA 130 (35.204.04[02]) - VAR - 743741, 335844 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 3 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

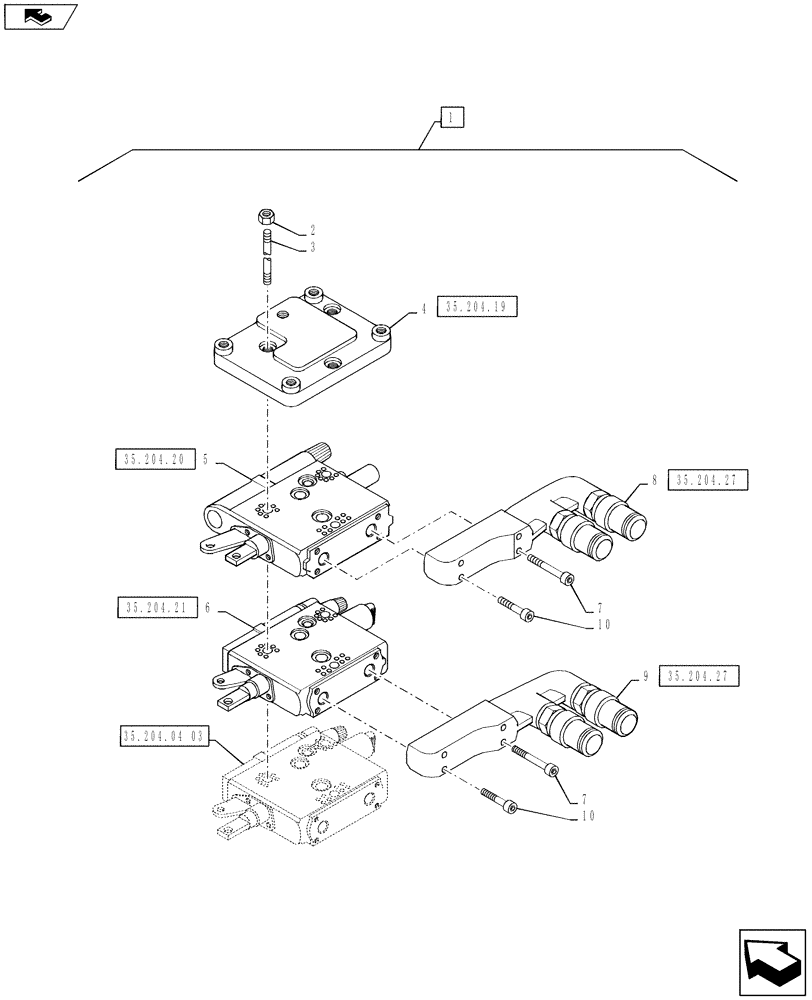

Схема запчастей Case IH PUMA 130 - (35.204.04[02]) - VAR - 743741, 335844 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 3 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS
35.204.21
9
7
10
4
35.204.19
8
6
2
7
35.204.27
5
35.204.20
3
35.204.04 03
home
35.204.27
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84266081

CONTROL VALVE

Incl 2 - 10 and 2 - 8, 10, 11 on fig 35.204.04 03

1шт.

2

5195169

NUT,M8

3шт.

3

47129476

THREADED TIE-ROD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

1шт.

5

87546169R

REMAN-HYD VALVE

1шт.

5

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87328572

HYD VALVE SECTION

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

87381964

QUICK MALE COUPLING

1шт.

9

87381963

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

4шт.
