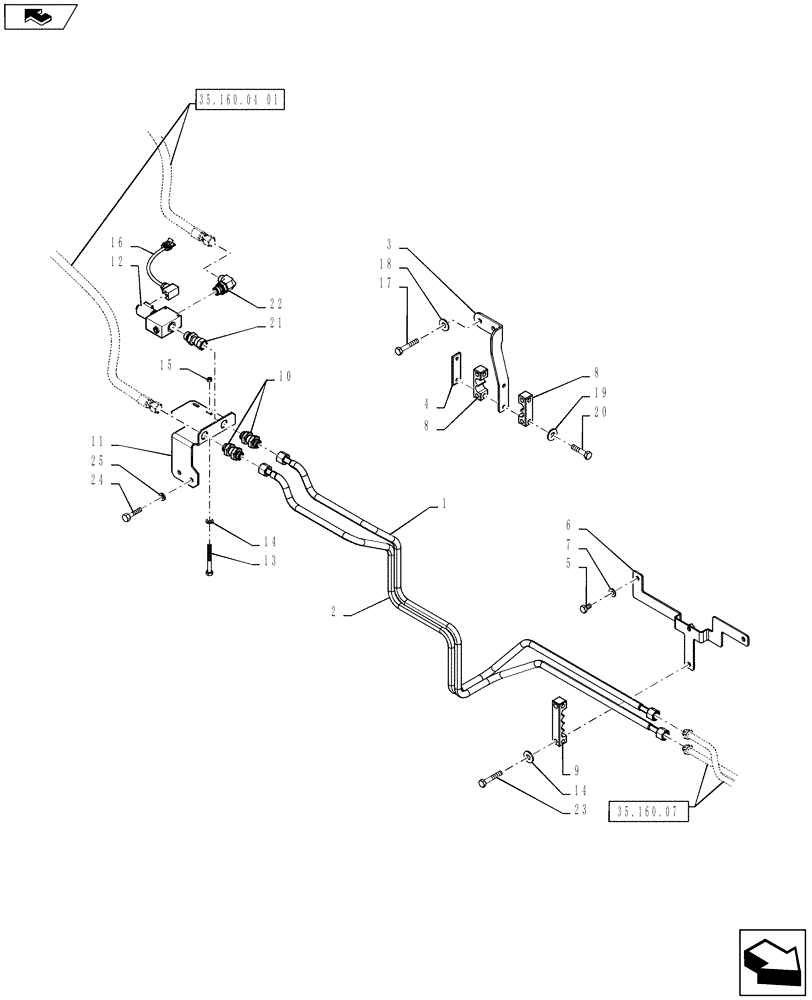

Запчасти Case IH PUMA 130 (35.160.04[02]) - VAR - 330926 - FRONT HPL - TUBES FROM MECHANICAL REAR REMOTE CONTROL VALVES (35) - HYDRAULIC SYSTEMS

1

84278879

HYD TUBE,16.00mm OD

Raise

1шт.

2

84278880

HYD TUBE,16.00mm OD

Lower

1шт.

3

84323173

SUPPORT

1шт.

4

84147271

PLATE

1шт.

5

84330708

HOLDER

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

7

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

8

84147270

CLAMP,2 Hoses

2шт.

9

87579043

CLAMP,4 Hoses

1шт.

10

82039603

HYD CONNECTOR

2шт.

11

84201721

SUPPORT

1шт.

12

5141295

SOLENOID VALVE

1шт.

13

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

14

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

3шт.

15

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

16

47133195

WIRE HARNESS

1шт.

17

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

18

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

19

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

20

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

21

87312047

HYD CONNECTOR

1шт.

22

87312050

HYD CONNECTOR

1шт.

23

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

24

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

25

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.
