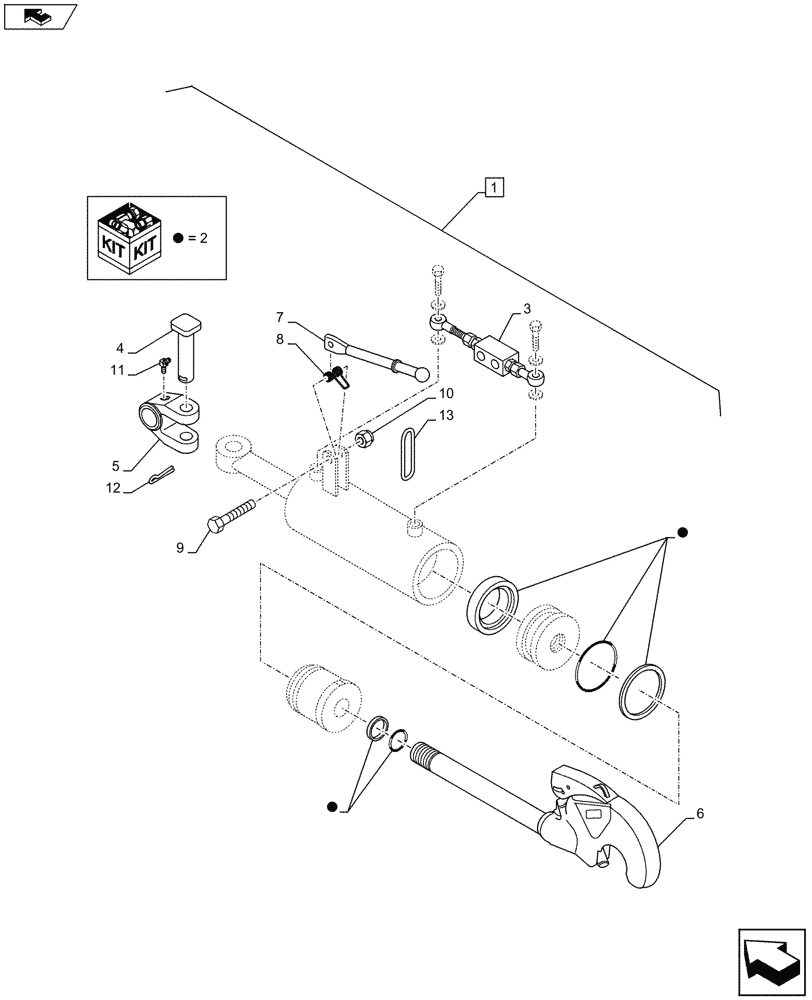

Запчасти Case IH PUMA 130 (35.124.01[02]) - THIRD-LINK SPRAG - BREAKDOWN - C7395 (35) - HYDRAULIC SYSTEMS

1

87710192

UPPER LINK

ASSY, Incl 2 - 13

1шт.

2

87707442

SEALING RING

1шт.

3

87710195

SHUT-OFF VALVE

1шт.

4

5161789

PIN,34mm OD x 91mm L

1шт.

5

5161787

YOKE,28mm D x 28mm D

1шт.

6

87710196

PISTON ROD

1шт.

7

5172394

LEVER

1шт.

8

5199923

SPRING

1шт.

9

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

1шт.

10

16105011

NUT,Hex, M12 x 1.25, Cl 8

1шт.

11

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

12

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

13

14471280

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

1шт.
