Запчасти Case IH PUMA 130 (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE

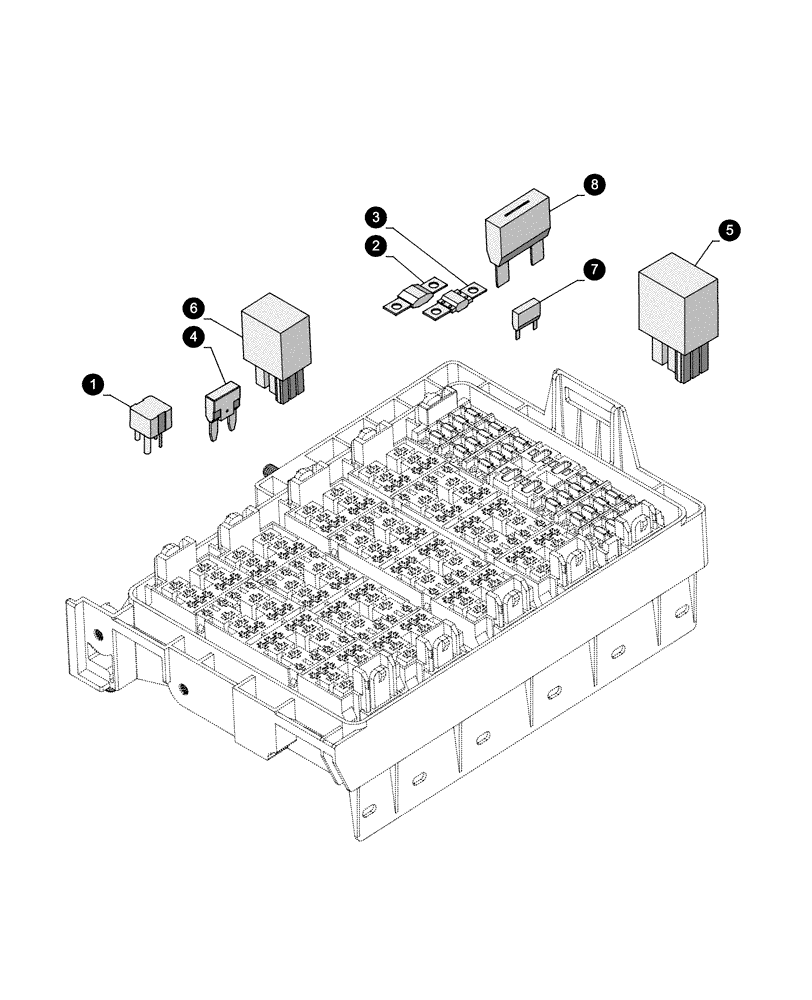

Схема запчастей Case IH PUMA 130 - (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE
2
3
7
4
8
5
1
6

Артикул

Название

Примечание

Количество

1

82030798

RELAY,12V, 70A

12V, 70A

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

1

82038934

RELAY

Rear View Mirror

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

2

11056290

FUSE,125A, Maxi

125A, Green

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

3

82033972

FUSE,250A

250A

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

4

10401290

FUSE,25 amp Mini

25A, Minival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

4

84127702

FUSE,10A, Mini, Red

10A, Minival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

4

84127703

FUSE,15A, Mini, Blue

15A, Minival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

4

84127704

FUSE,20A, Mini, Yellow

20A, Minival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

4

84153830

FUSE,5A, Mini, Beige

5A, Minival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

4

10395890

FUSE,5A, Mini, Beige

5A, Minival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

5

87691156

RELAY

12V, 10/15A

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

Valid with VAR. 330798

1шт.

5

87392809

RELAY,High Current, 12V, 190A

12V, 190A

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

Valid with VAR. 330798

1шт.

5

82013124

RELAY,12V, 30A

12V, 30A

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

6

82017871

RELAY,12V, 20A

12V, 35A, Maxival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

6

82023238

RELAY,12V, 20A

15/25A, Flasher

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

6

82022813

RELAY,12V, High Current

12V

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

6

87304226

RELAY,12V, Combined, Black

12V

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

6

84373949

RELAY

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

7

87390344

FUSE,30A, MIDIVAL

30A

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

7

84127814

FUSE,80A, Maxival, Natural

20A

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

8

84127705

FUSE,25A, Mini, White

25A, Microval

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

8

84127708

FUSE,30A, Mini, Green

30A, Microval, Green

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

8

84127813

FUSE,30A, Green

30A, Maxival

1шт.

Valid with PUMA 130-TRACTOR, PUMA 145-TRACTOR, PUMA 160-TRACTOR Models

1шт.

Выбрано товаров: 48
