Запчасти Case IH PUMA 130 (25.100.09) - VAR - 330408, 330429, 330430, 330426, 390408 - CL.4 FRONT AXLE - HOUSING (25) - FRONT AXLE SYSTEM

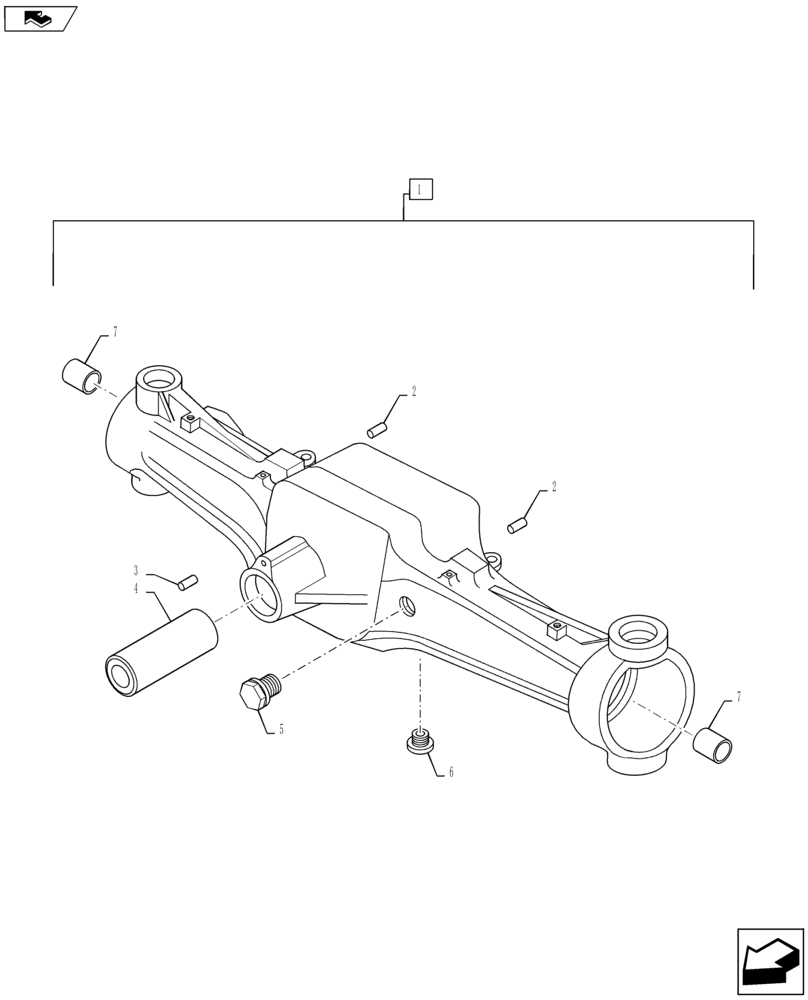

Схема запчастей Case IH PUMA 130 - (25.100.09) - VAR - 330408, 330429, 330430, 330426, 390408 - CL.4 FRONT AXLE - HOUSING (25) - FRONT AXLE SYSTEM
6
5
2
2
home
4
1
7
3
7

Артикул

Название

Примечание

Количество

1

87633677

AXLE HOUSING

Non-Suspended, Incl 2 - 4 and 7, VAR 330408, 330426 and Std for Puma 160, VAR 390408

1шт.

1

87633706

AXLE HOUSING

Suspended, Incl 2, 7. VAR 330429 and 330430

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

Non-Suspended Axle

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

Non-Suspended Axle

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

Выбрано товаров: 8
