Запчасти Case IH PUMA 130 (25.100.05) - VAR - 743700, 333648, 334648, 335648 - INTEGRATED FRONT HPL WITH PTO - CAPS AND COVER PLATE (25) - FRONT AXLE SYSTEM

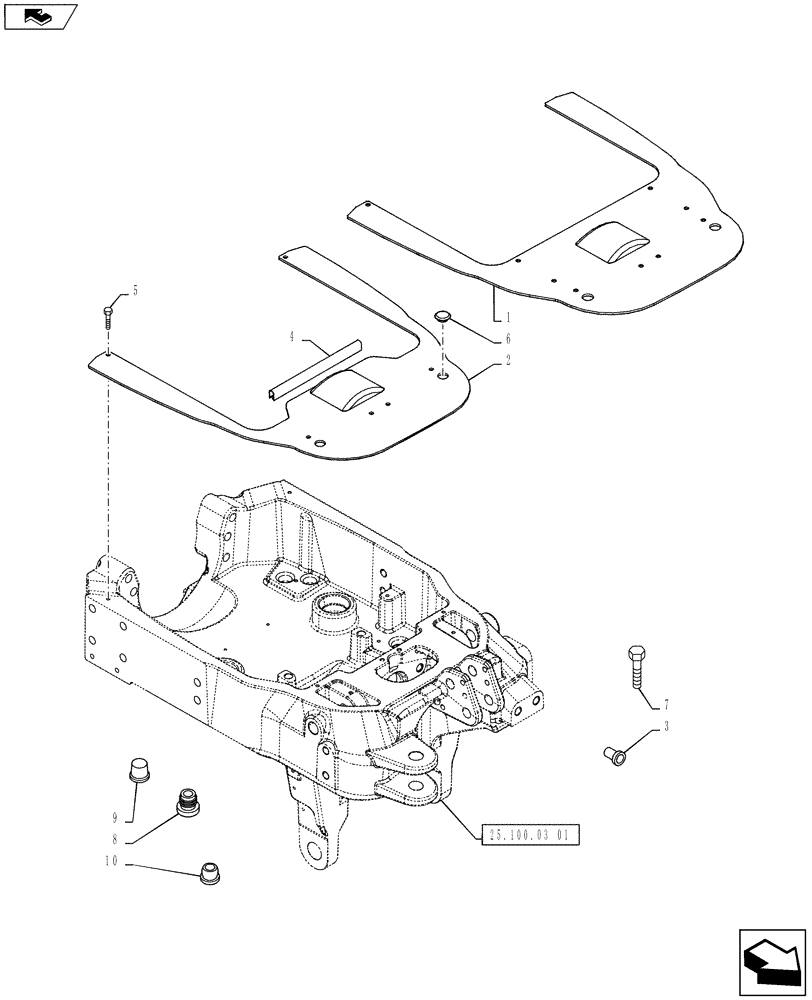

Схема запчастей Case IH PUMA 130 - (25.100.05) - VAR - 743700, 333648, 334648, 335648 - INTEGRATED FRONT HPL WITH PTO - CAPS AND COVER PLATE (25) - FRONT AXLE SYSTEM
home
10
9
8
4
7
25.100.03 01
1
2
6
5
3

Артикул

Название

Примечание

Количество

1

84168763

PLATE

Puma 130, 145

1шт.

2

84267280

COVER

Puma 160

1шт.

3

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

4шт.

4

83964601

MOLDING,164mm L

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

6

47057762

SLEEVE,25mm ID x 36mm OD x 10mm L

2шт.

7

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

8

83908579

PLUG,M7.62

2шт.

9

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

10

87523187

PLUG,M12 x 1.5

2шт.

Выбрано товаров: 10
