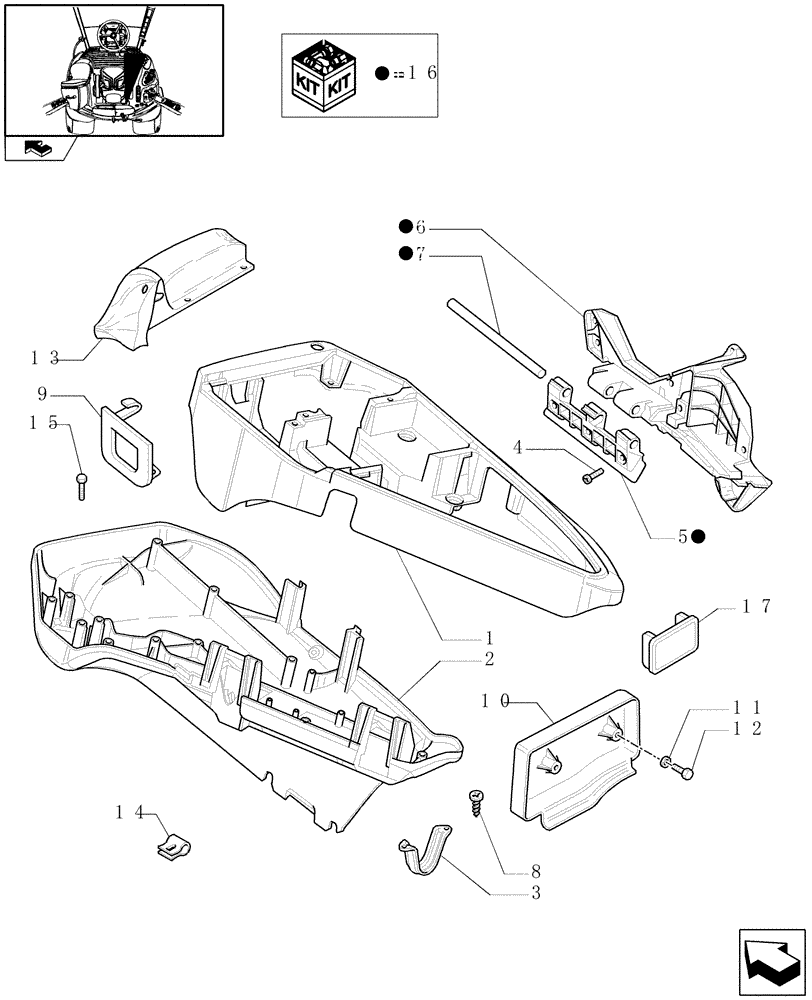

Запчасти Case IH PUMA 125 (1.97.0[01]) - ARMREST CONTROL UNIT - COVERS (10) - OPERATORS PLATFORM/CAB

1

84150725

SHELL

1шт.

2

87485766

SHELL

1шт.

3

87579853

RETAINER,14.9mm W x 56.7mm L

1шт.

4

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

9шт.

5

87487262

HINGE

1шт.

6

84153062

HINGE

1шт.

7

84147684

PIN,10mm OD x 144mm L

1шт.

8

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

3.5 x 9.5

2шт.

9

84152480

SHELL

1шт.

10

84122979

BEZEL

1шт.

Less Virtual Terminal (AFS Pro 200)

1шт.

11

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

2шт.

12

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

2шт.

13

87493863

HOLDER

1шт.

14

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT

4шт.

15

82016959

SCREW,M3.5 x 12mm

1шт.

16

84204558

HINGE

1шт.

17

82022763

PLUG

1шт.
